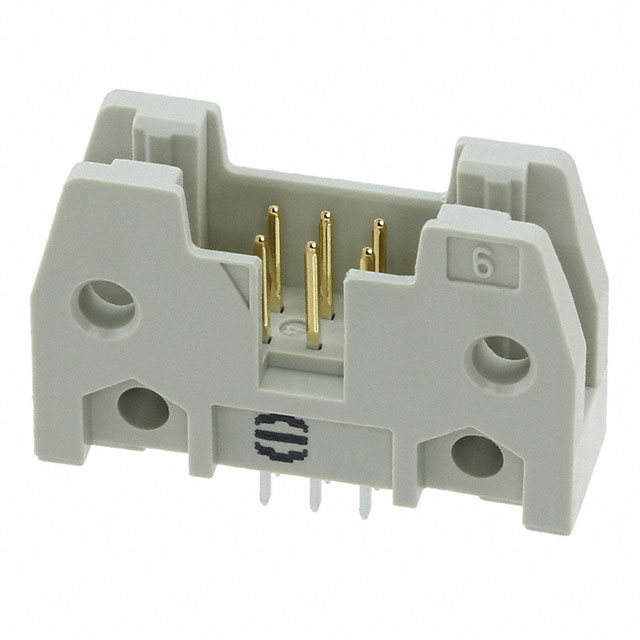

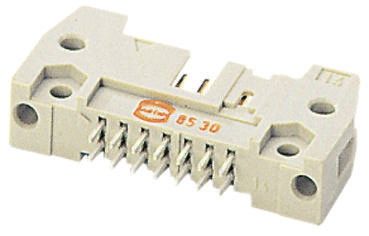

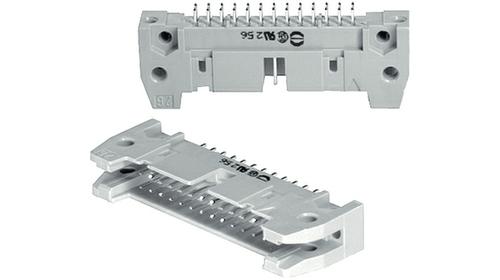

09185066924

Harting SEK-18 系列 2.54mm 有罩管座，带直向焊接引脚一系列 Harting SEK 管座，直向焊接引脚长 2.9 mm。性能级别 2 印刷电路板孔直径 1± 0.1 mm ### 注有关锁定杆，请参见库存号 693-5163 或 693-5176。### 针座和插座（IDC 终端）

Harting SEK-18 系列 2.54mm 有罩管座，带直向焊接引脚

一系列 Harting SEK 管座，直向焊接引脚长 2.9 mm。

性能级别 2

印刷电路板孔直径 1± 0.1 mm

### 注

有关锁定杆，请参见库存号 693-5163 或 693-5176。

### 针座和插座（IDC 终端）

得捷:
CONN HEADER VERT 6POS 2.54MM

欧时:
IDC connector 6-pin straight M

艾睿:
Reduce safety concerns with this shrouded 09185066924 header connector from Harting which will reduce the possibility of accidentally shorting pins when a printed circuit board is being used. This M connector has 6 contacts that are plated with gold. This is a 2-row connector. Its pitch is 2.54 mm. It has a straight body orientation. It has a male type gender. This device has a maximum current rating of 1 A. It uses the solder termination method. This product is 27.2 mm long, 17.3 mm tall and 8.5 mm deep. This connector has an operating temperature of -55 to 125 °C. 09185066924 is housed in polybutylene terephthalate.

Allied Electronics:
SEK 18 Series, 2.54mm Pitch 6 Way 2 Row Straight PCB Header, Solder Term, 1A
