Wire-To-Board Connector, Right Angle, SEK 18 Series, Through Hole, Header, 14, 2.54mm
针座 通孔，直角 14 位置 0.100"（2.54mm）
得捷:
CONN HEADER R/A 14POS 2.54MM
艾睿:

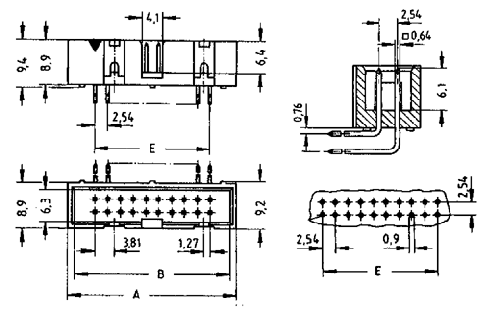

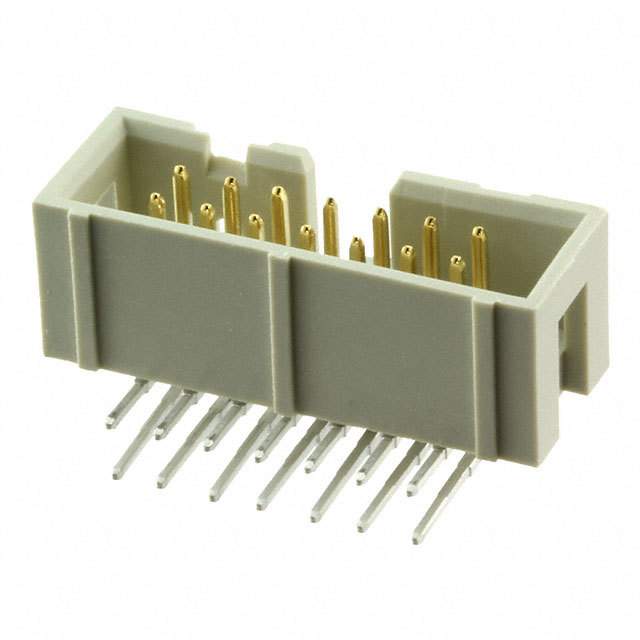

Are you looking for a solution to support physical configuration options on your PCB? Then mount this shrouded 09185147323 header connector from Harting on your PCB today! This M connector has 14 M contacts. It has a right angle body orientation. This is a 2-row connector. Its pitch is 2.54 mm. It has a male type gender. This product is 25.4 mm long, 9.2 mm tall and 11.99 mm deep. It uses the solder termination method.
触点数 14
极性 Male
触点电镀 Gold
额定电压AC 350 V
额定电流 1.00 A
绝缘电阻 1000 MΩ
排数 2
易燃性等级 UL 94 V-0
针脚数 14
接触电阻 20.0 mΩ
拔插次数 100
额定电流Max 1 A
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压Max 500 V
接触电阻Max 20 mΩ
安装方式 Through Hole
引脚间距 2.54 mm
高度 9.2 mm
引脚间距 2.54 mm
颜色 Gray
触点材质 Copper Alloy
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tray
制造应用 -
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
09185147323 Harting Technology Group 哈丁电子 | 当前型号 | 当前型号 |
057-014-033 Pancon | 类似代替 | 09185147323和057-014-033的区别 |
