09185206924

Harting SEK-18 系列 2.54mm 有罩管座，带直向焊接引脚一系列 Harting SEK 管座，直向焊接引脚长 2.9 mm。性能级别 2 印刷电路板孔直径 1± 0.1 mm ### 注有关锁定杆，请参见库存号 693-5163 或 693-5176。### 针座和插座（IDC 终端）

Harting SEK-18 系列 2.54mm 有罩管座，带直向焊接引脚

一系列 Harting SEK 管座，直向焊接引脚长 2.9 mm。

性能级别 2

印刷电路板孔直径 1± 0.1 mm

### 注

有关锁定杆，请参见库存号 693-5163 或 693-5176。

得捷:
CONN HEADER VERT 20POS 2.54MM

欧时:
IDC connector 20-pin straight M

贸泽:
集管和线壳 20P MALE STRT IDC NO LEVERS

e络盟:
线至板连接器, Shrouded, SEK 18 Series, 20 触点, 针座, 2.54 mm, 通孔安装, 2 排

艾睿:

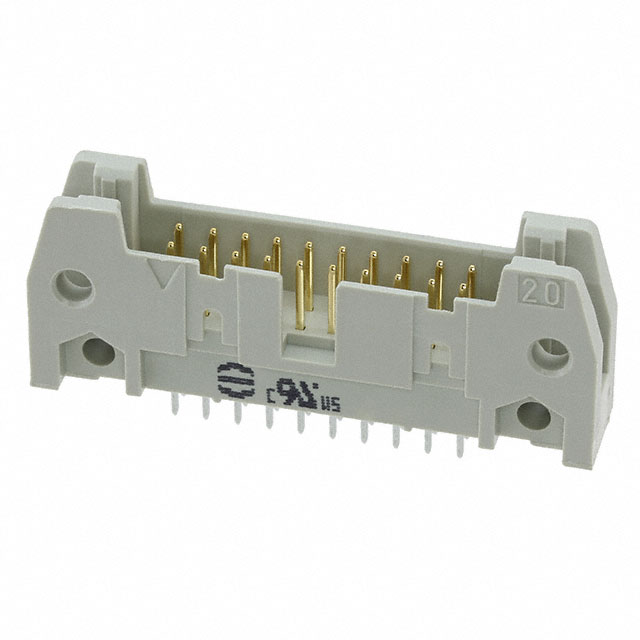

This shrouded 09185206924 header connector from Harting reduces the possibility of accidentally shorting pins when a board is being used. This M connector has 20 contacts that are plated with gold. Its pitch is 2.54 mm. It has a male type gender. It has a straight body orientation. This is a 2-row connector. This device has a maximum current rating of 1 A. 09185206924 is housed in polybutylene terephthalate. It uses the solder termination method. This connector has an operating temperature of -55 to 125 °C. This product is 45 mm long, 17.3 mm tall and 8.5 mm deep.

Allied Electronics:
SEK 18 Series, 2.54mm Pitch 20 Way 2 RowStraight PCB Header, Solder Term, 1A

Newark:
# HARTING  09185206924  CONNECTOR, HEADER, 20POS, 2ROW, 2.54MM New
