0353621250

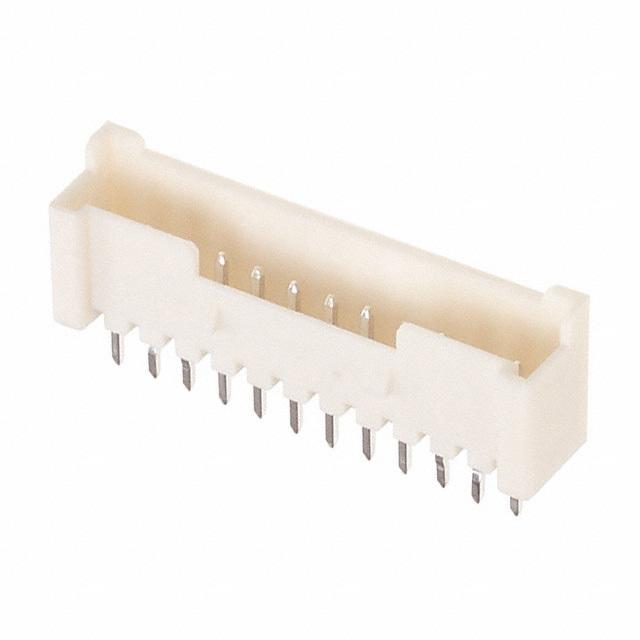

2.00毫米（ .079 “ ）间距福尔摩斯™线对板头，垂直，用锁扣， 12Circuits ，与纽结PC尾巴，自然 2.00mm .079" Pitch Sherlock™ Wire-to-Board Header, Vertical, with Positive Lock, 12Circuits, with Kinked PC Tails, Natural

针座 通孔 12 位置 0.079"（2.00mm）

得捷:
CONN HEADER VERT 12POS 2MM

贸泽:
Headers & Wire Housings 2.00MM HDR 01X12P VT TH P/LOCK

艾睿:
Support physical configuration options for jumper posts by mounting this shrouded 0353621250 header connector from Molex. This HDR connector&s;s 12 contacts that are made out of brass and plated with tin over nickel. It has a maximum voltage rating of 125 V. Its pitch is 2 mm. It has a straight body orientation. This is a 1-row connector. It has a header type gender. This device has a maximum current rating of 2 A/contact. This product is 26.3 mm long, 8.5 mm tall and 5.5 mm deep. 0353621250 is housed in natural polyamide. It uses the solder termination method. This connector has an operating temperature of -40 to 105 °C.

安富利:
Conn Shrouded Header HDR 12 POS 2mm Solder ST Thru-Hole Bag

Verical:
Conn Shrouded Header 4 Sides HDR 12 POS 2mm Solder ST Thru-Hole Sherlock™ Bag
