0874271042

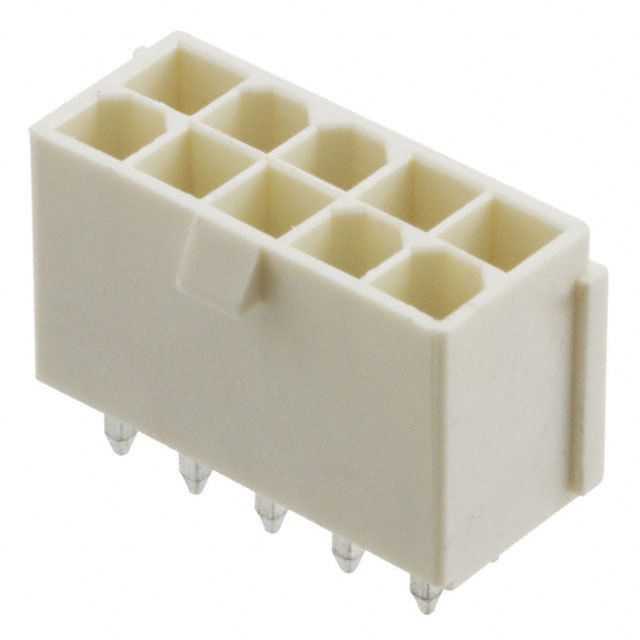

4.20毫米（ 0.165 “ ）的Mini-适合小头，立式，耐高温，不带法兰， 10电路 4.20mm .165" Mini-Fit Jr. Header, Vertical, High Temperature, without Flange, 10 Circuits

Use this power connector from to power up your circuit without having to worry about energy seepage. This HDR connector"s 10 contacts that are made out of brass and plated with tin over nickel. It has a straight body orientation. It has a header type gender. Its pitch is 4.2 mm. This connector has a single port. It has a maximum voltage rating of 600 V. This device has a maximum current rating of 13 A/contact. 0874271042 is housed in nylon 4/6. This power connector has an operating temperature range of -40 °C to 105 °C. This product is 23.8 mm long, 13.5 mm tall and 11.4 mm deep. Its 10 terminals use the solder termination method.
