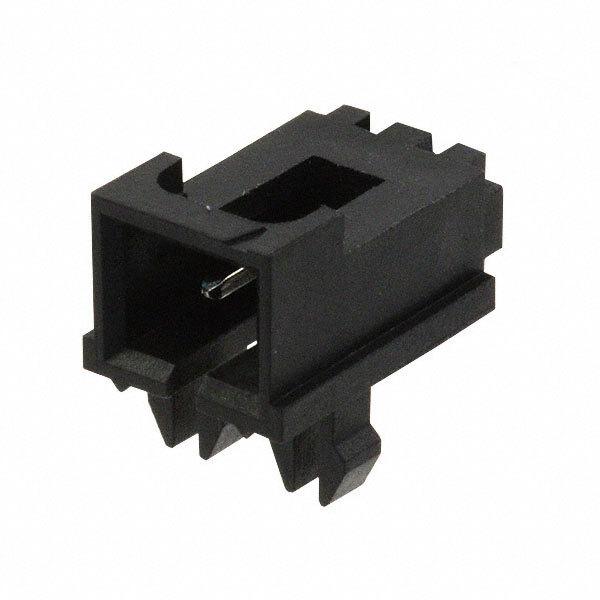

2.54毫米（ .100“ ）间距SL ™头，单排，直角， 0.120 ”口袋，带罩，带斜角塑料钉， 2回路，锡（Sn ）镀层 2.54mm .100" Pitch SL™ Header, Single Row, Right Angle, .120" Pocket, Shrouded,with Beveled Plastic Peg, 2 Circuits, Tin Sn Plating
针座 通孔，直角 2 位置 0.100"（2.54mm）
得捷:
CONN HEADER R/A 2POS 2.54MM
艾睿:
Mount this shrouded 0705510001 header connector from Molex on a jumper post on your PCB to support physical configuration options. This HDR connector&s;s 2 contacts that are made out of brass and plated with tin over nickel. This is a 1-row connector. It has a maximum voltage rating of 250 VAC. It has a header type gender. Its pitch is 2.54 mm. It has a right angle body orientation. This device has a maximum current rating of 3 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. 0705510001 is housed in black polyester. This connector has an operating temperature of -40 to 105 °C. It uses the solder termination method. This product is 13.59 mm deep.
