0039301100

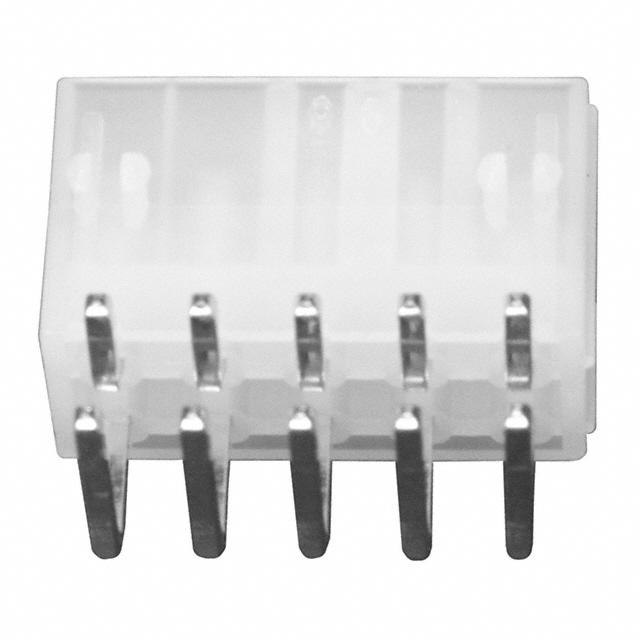

0039301100图片1

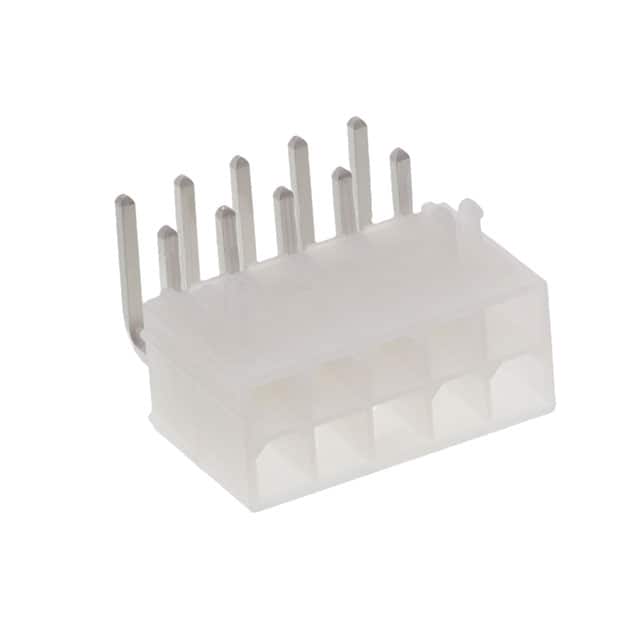

0039301100图片2
0039301100图片3
0039301100图片4
0039301100图片5
0039301100图片6
0039301100图片7
0039301100概述

4.20毫米( .165 “ )间距迷你小飞度™插头,双排,直角,以管理单元塑料栓锁电路板,电路10 ,PA聚酰胺尼龙6/6 94V - 2 ,锡(Sn )镀层 4.20mm .165" Pitch Mini-Fit Jr.™ Header, Dual Row, Right Angle, with Snap-in Plastic Peg PCB Lock, 10 Circuits, PA Polyamide Nylon 6/6 94V-2, Tin Sn Plating

Connector Header Through Hole, Right Angle 10 position 0.165" 4.20mm


得捷:
CONN HEADER R/A 10POS 4.2MM


贸泽:
Headers & Wire Housings MINI-FIT JR HDR 10P RA 94V-2


艾睿:
Use the 0039301100 power connector from Molex to power up your circuit with the least amount of losses. This HDR connector&s;s 10 contacts that are made out of brass alloy and plated with tin over copper. This connector has a single port. Its pitch is 4.2 mm. It has a right angle body orientation. It has a header type gender. It has a maximum voltage rating of 600 V. This device has a maximum current rating of 13 A/contact. 0039301100 is housed in polyamide 6/6. This power connector has an operating temperature range of -40 °C to 105 °C. Its 10 terminals use the solder termination method. This product is 22.2 mm long and 19.4 mm.


安富利:
Conn Wire to Board HDR 10 POS 4.2mm Solder RA Thru-Hole Bulk


Chip1Stop:
Conn Wire to Board HDR 10 POS 4.2mm Solder RA Thru-Hole Bulk


Verical:
Conn Wire to Board HDR 10 POS 4.2mm Solder RA Side Entry Thru-Hole Mini-Fit Jr™ Bag


0039301100中文资料参数规格
技术参数

触点数 10

极性 Male

绝缘电阻 1000 MΩ

排数 2

针脚数 10

拔插次数 30

额定电流Max 13A/触头

工作温度Max 105 ℃

工作温度Min -40 ℃

额定电压Max 600 V

接触电阻Max 10 mΩ

封装参数

安装方式 Through Hole

外形尺寸

高度 10 mm

物理参数

外壳颜色 Natural

颜色 Natural

触点材质 Brass Alloy

其他

产品生命周期 Unknown

包装方式 Bag

制造应用 通用,工业,电信

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买0039301100
型号: 0039301100
制造商: Molex 莫仕
描述:4.20毫米( .165 “ )间距迷你小飞度™插头,双排,直角,以管理单元塑料栓锁电路板,电路10 ,PA聚酰胺尼龙6/6 94V - 2 ,锡(Sn )镀层 4.20mm .165" Pitch Mini-Fit Jr.™ Header, Dual Row, Right Angle, with Snap-in Plastic Peg PCB Lock, 10 Circuits, PA Polyamide Nylon 6/6 94V-2, Tin Sn Plating
替代型号0039301100
型号/品牌 代替类型 替代型号对比

0039301100

Molex 莫仕

当前型号

当前型号

0039300100

莫仕

完全替代

0039301100和0039300100的区别
