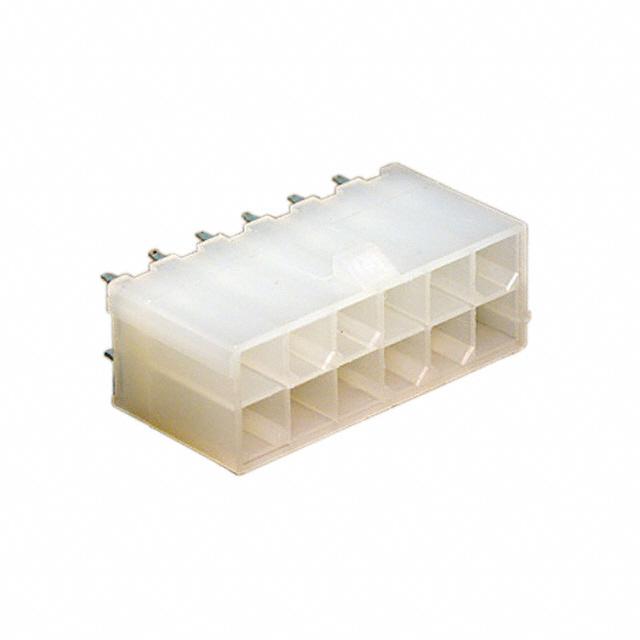

4.20毫米( .165 “ )间距迷你适合小头,双排,垂直,无管理单元塑料钉板锁 4.20mm .165" Pitch Mini-Fit Jr. Header, Dual Row, Vertical, without Snap-in Plastic Peg PCB Lock
Connector Header Through Hole 12 position 0.165" 4.20mm
得捷:
CONN HEADER VERT 12POS 4.2MM
艾睿:
Use this 0039288120 power connector from Molex to connect a power supply to a circuit. This HDR connector&s;s 12 contacts that are made out of brass and plated with bright tin over copper. Its pitch is 4.2 mm. This connector has a single port. It has a maximum voltage rating of 600 V. It has a header type gender. It has a straight body orientation. This device has a maximum current rating of 9 A/contact. 0039288120 is housed in nylon 6/6. This power connector has an operating temperature range of -40 °C to 105 °C. This product is 26.8 mm long, 12.8 mm tall and 11 mm deep. Its 12 terminals use the solder termination method.
安富利:
Conn Wire to Board HDR 12 POS 4.2mm Solder ST Thru-Hole Tray
Verical:
Conn Power HDR 12 POS 4.2mm Solder ST Thru-Hole 12 Terminal 1 Port Mini-Fit Jr™ Bag
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
0039288120 Molex 莫仕 | 当前型号 | 当前型号 |
0039281123 莫仕 | 功能相似 | 0039288120和0039281123的区别 |
