0874270802

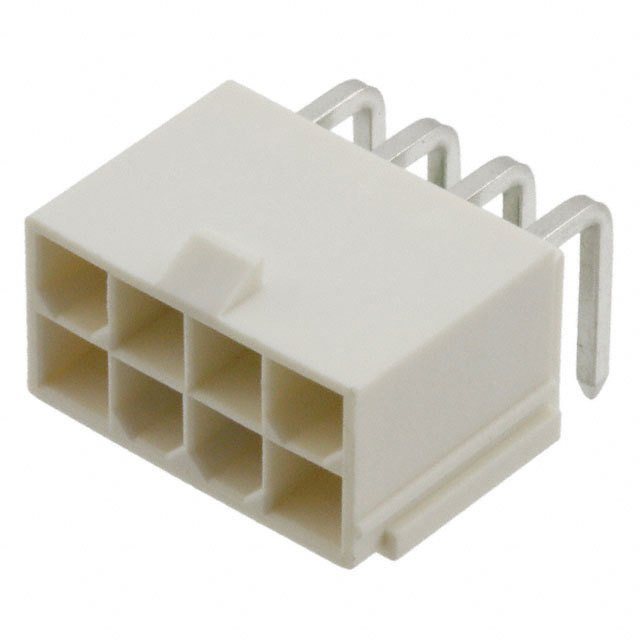

0874270802图片1
0874270802图片2
0874270802图片3
0874270802图片4
0874270802概述

4.20毫米( 0.165 “ )的Mini-适合小™接头,直角,耐高温,无Flange8电路,锡(Sn ),镍( Ni)镀层,灼热丝兼容 4.20mm .165" Mini-Fit Jr.™ Header, Right Angle, High Temperature, without Flange8 Circuits, Tin Sn over Nickel Ni Plating, Glow Wire Compatible

Connector Header Through Hole, Right Angle 8 position 0.165" 4.20mm


得捷:
CONN HEADER R/A 8POS 4.2MM


艾睿:
This 0874270802 power connector from Molex is ideal for powering up your circuit. This HDR connector&s;s 8 contacts that are made out of brass and plated with tin over nickel. This connector has a single port. It has a maximum voltage rating of 600 V. It has a right angle body orientation. Its pitch is 4.2 mm. It has a header type gender. 0874270802 is housed in nylon 4/6. This device has a maximum current rating of 13 A/contact. This component will be shipped in tray format. This product is 19.2 mm long, 11.4 mm tall and 19.4 mm deep. This power connector has a minimum operating temperature of -40 °C and a maximum of 105 °C. Its 8 terminals use the solder termination method.


安富利:
Conn Wire to Board HDR 8 POS 4.2mm Solder RA Thru-Hole Tray


Chip1Stop:
Conn Wire to Board HDR 8 POS 4.2mm Solder RA Thru-Hole Tray


Verical:
Conn Power HDR 8 POS 4.2mm Solder RA Thru-Hole 8 Terminal 1 Port Mini-Fit Jr™ Tray


0874270802中文资料参数规格
技术参数

触点数 8

绝缘电阻 1000 MΩ

排数 2

针脚数 8

拔插次数 30

额定电流Max 13A/触头

工作温度Max 105 ℃

工作温度Min -40 ℃

额定电压Max 600 V

接触电阻Max 10 mΩ

封装参数

安装方式 Through Hole

外形尺寸

长度 19.2 mm

宽度 19.4 mm

高度 11.4 mm

物理参数

外壳颜色 Beige

触点材质 Brass

其他

产品生命周期 Unknown

包装方式 Tray

制造应用 通用,工业,电信

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买0874270802
型号: 0874270802
制造商: Molex 莫仕
描述:4.20毫米( 0.165 “ )的Mini-适合小™接头,直角,耐高温,无Flange8电路,锡(Sn ),镍( Ni)镀层,灼热丝兼容 4.20mm .165" Mini-Fit Jr.™ Header, Right Angle, High Temperature, without Flange8 Circuits, Tin Sn over Nickel Ni Plating, Glow Wire Compatible
替代型号0874270802
型号/品牌 代替类型 替代型号对比

0874270802

Molex 莫仕

当前型号

当前型号

0874270803

莫仕

完全替代

0874270802和0874270803的区别

0366330042

莫仕

完全替代

0874270802和0366330042的区别
