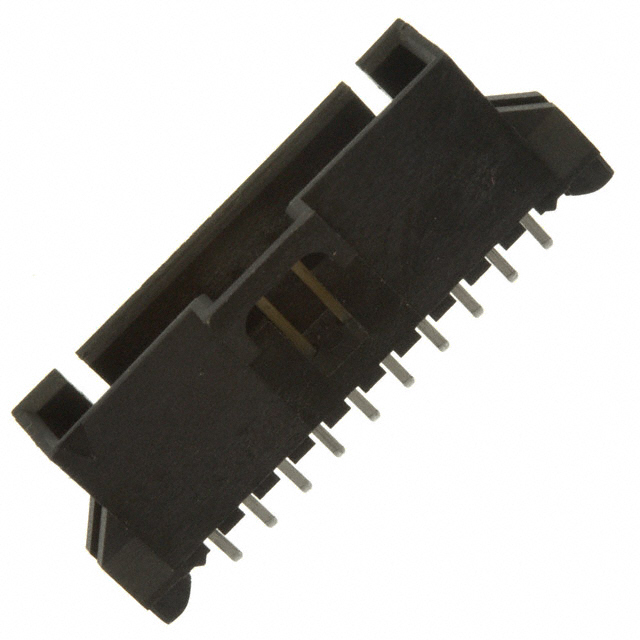

2.54毫米（ .100“ ）间距SL ™头，单列0.120 ”掌上垂直，带罩， withPress杉塑料钉， 10电路， 0.38μm （ 15μ “），金（Au ）选择性电镀，锡（Sn 2.54mm .100" Pitch SL™ Header, Single Row .120" Pocket Vertical, Shrouded, withPress-fir Plastic Peg, 10 Circuits, 0.38μm 15μ" Gold Au Selective Plating, Tin Sn
Connector Header Through Hole 10 position 0.100" 2.54mm
得捷:
CONN HEADER VERT 10POS 2.54MM
贸泽:
Headers & Wire Housings SL 2.54MM HDR VT TH SHRD 1X10P
艾睿:
As an added safety precaution, the shrouded 0705450044 header connector from Molex will prevent and protect components on your circuit board from accidentally touching each other. This HDR connector&s;s 10 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a maximum voltage rating of 250 V. It has a header type gender. Its pitch is 2.54 mm. It has a straight body orientation. This is a 1-row connector. This device has a maximum current rating of 3 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This connector has an operating temperature of -40 to 105 °C. It uses the solder termination method. This product is 6.6 mm deep. 0705450044 is housed in black polyester.
Chip1Stop:
Conn Shrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole Tube
Verical:
Conn Shrouded Header 4 Sides HDR 10 POS 2.54mm Solder ST Thru-Hole SL™ Tube
