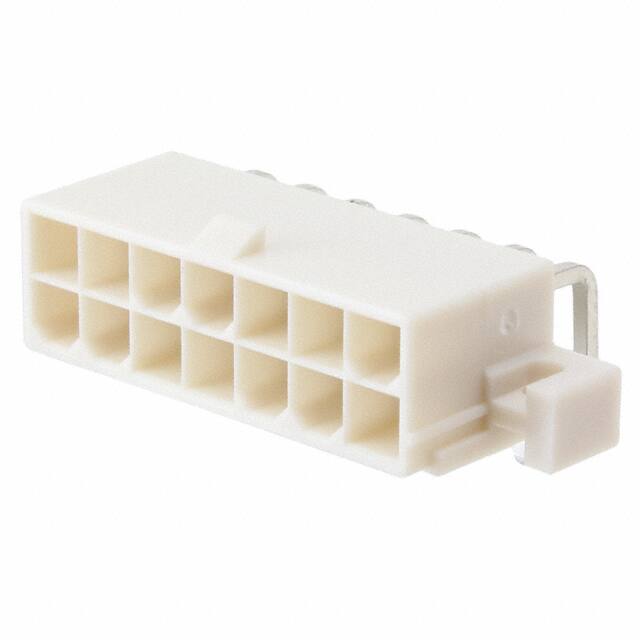

4.20毫米（ .165 “ ）间距迷你适合小头，双排，直角，与PCB安装法兰， 14电路 4.20mm .165" Pitch Mini-Fit Jr. Header, Dual Row, Right Angle, with PCB Mounting Flange, 14 Circuits
Connector Header Through Hole, Right Angle 14 position 0.165" 4.20mm
得捷:
CONN HEADER R/A 14POS 4.2MM
艾睿:
This robust 0039291147 power connector from Molex easily retains normal operation in harsh and stressful environments. This HDR connector&s;s 14 contacts that are made out of brass and plated with tin over copper. It has a right angle body orientation. It has a header type gender. It has a maximum voltage rating of 600 V. Its pitch is 4.2 mm. This connector has a single port. This device has a maximum current rating of 13 A/contact. 0039291147 is housed in polyamide 6/6. This power connector has an operating temperature range of -40 °C to 105 °C. This product is 40.6 mm long, 11.4 mm tall and 19.4 mm deep. Its 14 terminals use the solder termination method.
安富利:
Conn Wire to Board HDR 14 POS 4.2mm Solder RA Thru-Hole Bag
Verical:
Conn Power HDR 14 POS 4.2mm Solder RA Thru-Hole 14 Terminal 1 Port Mini-Fit Jr™ Bag
