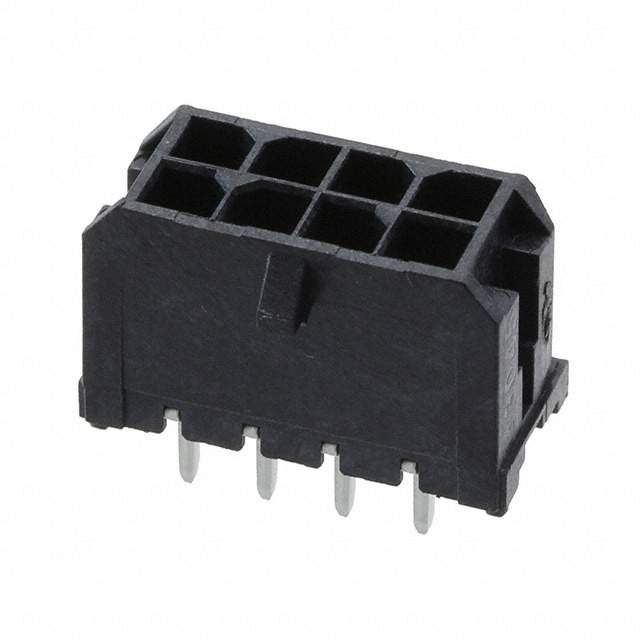

3.00毫米（ 0.118 “ ）间距微飞度3.0 ™接头，表面安装，双排，垂直，与PCB偏光PEG， 8电路 3.00mm .118" Pitch Micro-Fit 3.0™ Header, Surface Mount Compatible, Dual Row, Vertical, with PCB Polarizing Peg, 8 Circuits
Connector Header Through Hole 8 position 0.118" 3.00mm
得捷:
CONN HEADER VERT 8POS 3MM
艾睿:
As an added safety precaution, the wire to board 0430450829 header connector from Molex will prevent and protect components on your circuit board from accidentally touching each other. This HDR connector&s;s 8 contacts that are made out of brass alloy and plated with gold over nickel. Its pitch is 3 mm. It has a straight body orientation. It has a header type gender. This is a 2-row connector. It has a maximum voltage rating of 600 V. This device has a maximum current rating of 5 A/contact. The component will be shipped in tray format. This product is 16.15 mm long, 9.91 mm tall and 8.77 mm deep. It uses the solder termination method. This connector has an operating temperature of -40 to 105 °C. 0430450829 is housed in black liquid crystal polymer.
