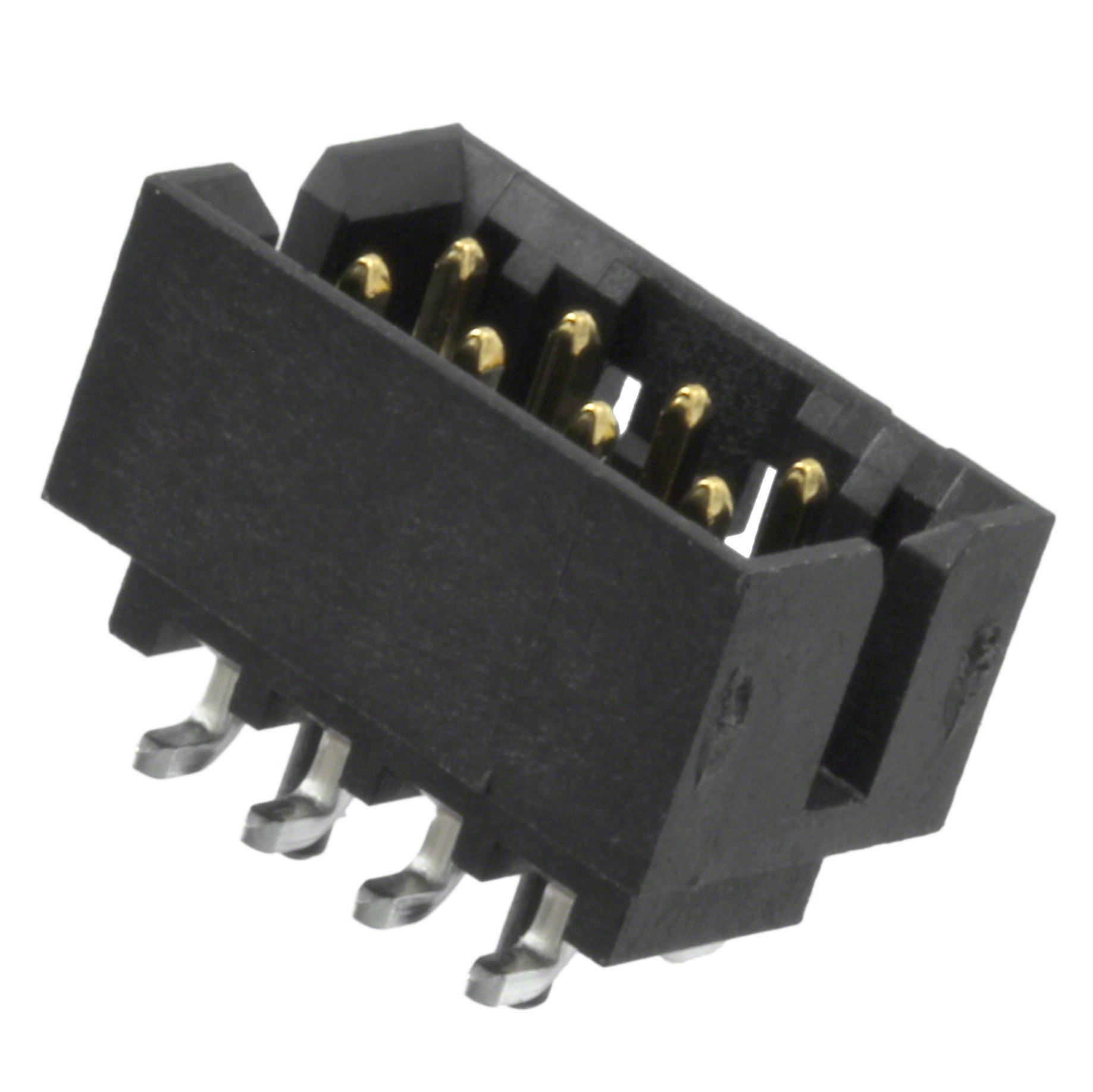

2.00毫米（ 0.079 ）间距的Milli-电网™接头，表面贴装，立式，带罩，无铅8电路， 0.38μm （ 15μ ），金（Au ），电镀，无PCB定位器 2.00mm .079 Pitch Milli-Grid™ Header, Surface Mount, Vertical, Shrouded, Leadfree 8 Circuits, 0.38μm 15μ Gold Au Plating, without PCB Locator
Connector Header Surface Mount 8 position 0.079" 2.00mm
得捷:
MGRID HDR SHRD SMT O/CAP 8CKT
艾睿:
Support physical configuration options for jumper posts by mounting this shrouded 0878320824 header connector from Molex. This HDR connector&s;s 8 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a header type gender. It has a maximum voltage rating of 125 V. It has a straight body orientation. Its pitch is 2 mm. This is a 2-row connector. This device has a maximum current rating of 2 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. 0878320824 is housed in black nylon 4/6. It uses the solder termination method. This connector has an operating temperature of -55 to 105 °C. This product is 10.65 mm long, 7.6 mm tall and 6.3 mm deep.
Verical:
Conn Shrouded Header 4 Sides HDR 8 POS 2mm Solder ST Top Entry SMD Milli-Grid™ Tube
