0022285364

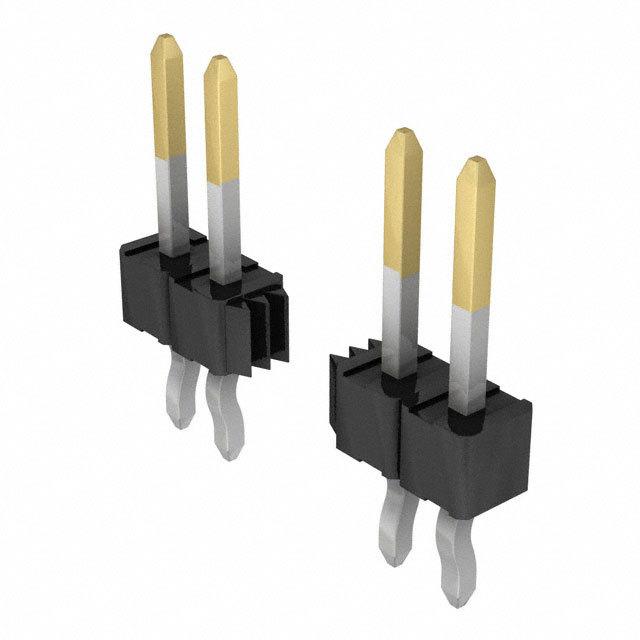

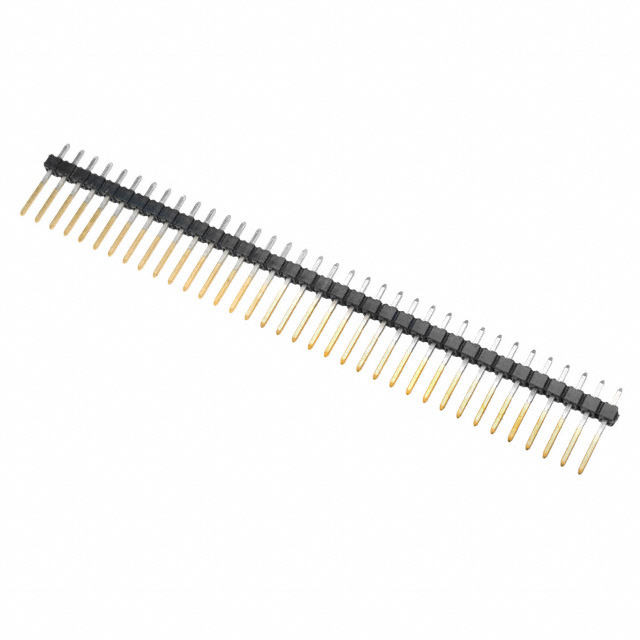

2.54毫米（ .100“ ）间距KK®头，分离式，立式， 36电路， 0.38μm （ 15μ ），金（Au ）选择性镀层，配合针脚长度8.13毫米（ 0.320 ） ，与斜塔PC尾巴 2.54mm .100" Pitch KK® Header, Breakaway, Vertical, 36 Circuits, 0.38μm 15μ Gold Au Selective Plating, Mating Pin Length 8.13mm .320, with Kinked PC Tails

针座 通孔 36 位置 0.100"（2.54mm）

得捷:
CONN HEADER VERT 36POS 2.54MM

艾睿:
Make strong and binding connections on your circuit boards by adopting this unshrouded 0022285364 connector from Molex. This HDR connector&s;s 36 contacts that are made out of brass and plated with gold over nickel. It has a straight body orientation. It has a header type gender. It has a maximum voltage rating of 250 V. This is a 1-row connector. Its pitch is 2.54 mm. This device has a maximum current rating of 4 A/contact. This connector has an operating temperature of -40 to 80 °C. This product is 91.44 mm long, 10.42 mm tall and 2.49 mm deep. It uses the solder termination method. 0022285364 is housed in black nylon.

安富利:
Conn Unshrouded Header HDR 36 POS 2.54mm Solder ST Thru-Hole Bag

Verical:
Conn Unshrouded Header HDR 36 POS 2.54mm Solder ST Thru-Hole KK® Bag
