2.54毫米（ .100“ ）间距C- Grid®头，双排，超薄，直角， Shrouded10电路， 0.127μm （ 5μ ”），金（Au ）镀层，锡（ Sn）的PC端脚镀层 2.54mm .100" Pitch C-Grid® Header, Dual Row, Low Profile, Right Angle, Shrouded10 Circuits, 0.127μm 5μ" Gold Au Plating, TinSn PC Tail Plating
针座 通孔，直角 10 位置 0.100"（2.54mm）
得捷:
CONN HDR SHDR R/A GOLD 10POS
艾睿:

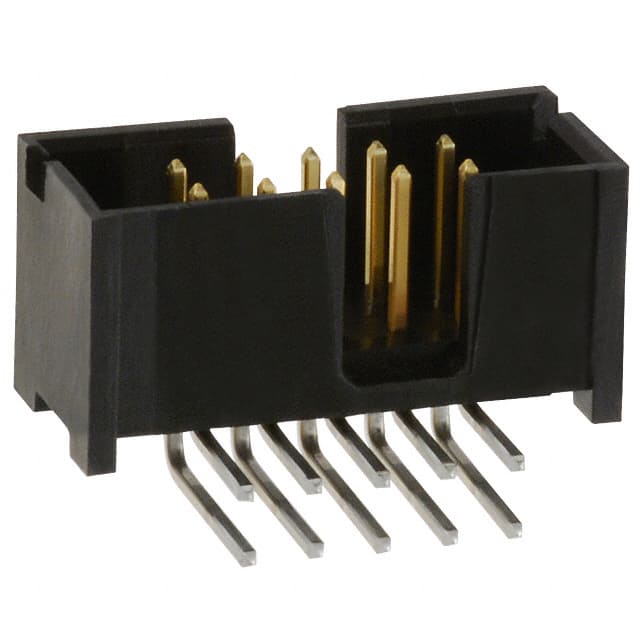

This shrouded 0702471054 header connector from Molex reduces the possibility of accidentally shorting pins when a board is being used. This HDR connector&s;s 10 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a header type gender. Its pitch is 2.54 mm. It has a maximum voltage rating of 250 V. It has a right angle body orientation. This is a 2-row connector. This device has a maximum current rating of 2.5 A/contact. The component will be shipped in tray format. It uses the solder termination method. This connector has an operating temperature of -55 to 120 °C. 0702471054 is housed in black polyester. This product is 20.32 mm long, 8.89 mm tall and 14.77 mm deep.
