2.54毫米（ .100“ ）间距SL ™头，单列0.120 ”掌上垂直，带罩， withPress杉塑料钉， 5电路， 0.76μm （ 30μ “），金（Au ）选择性电镀，锡（ Sn）的PC 2.54mm .100" Pitch SL™ Header, Single Row .120" Pocket Vertical, Shrouded, withPress-fir Plastic Peg, 5 Circuits, 0.76μm 30μ" Gold Au Selective Plating, Tin Sn PC
针座 通孔 5 位置 0.100"（2.54mm）
得捷:
CONN HEADER VERT 5POS 2.54MM
艾睿:

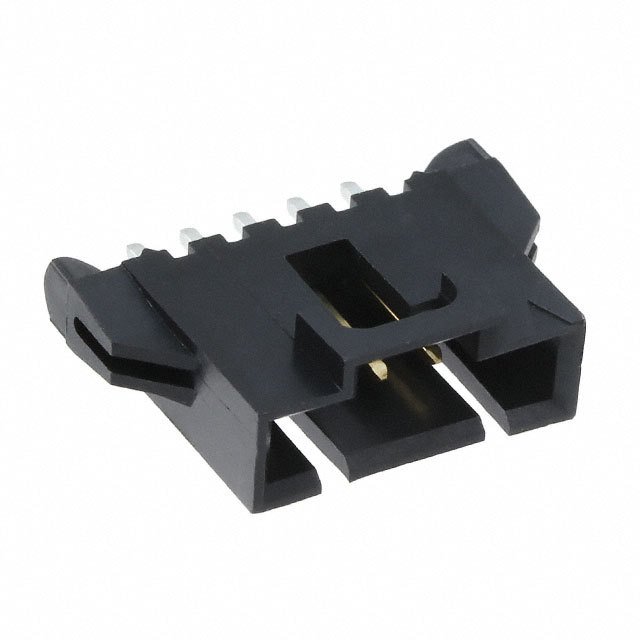

Use this shrouded 0705450074 connector from Molex when board-to-board interconnects is required. This HDR connector&s;s 5 contacts that are made out of phosphor bronze and plated with gold over nickel. Its pitch is 2.54 mm. This is a 1-row connector. It has a maximum voltage rating of 250 V. It has a header type gender. It has a straight body orientation. This device has a maximum current rating of 3 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. 0705450074 is housed in black polyester. This product is 6.6 mm deep. It uses the solder termination method. This connector has an operating temperature of -40 to 105 °C.
