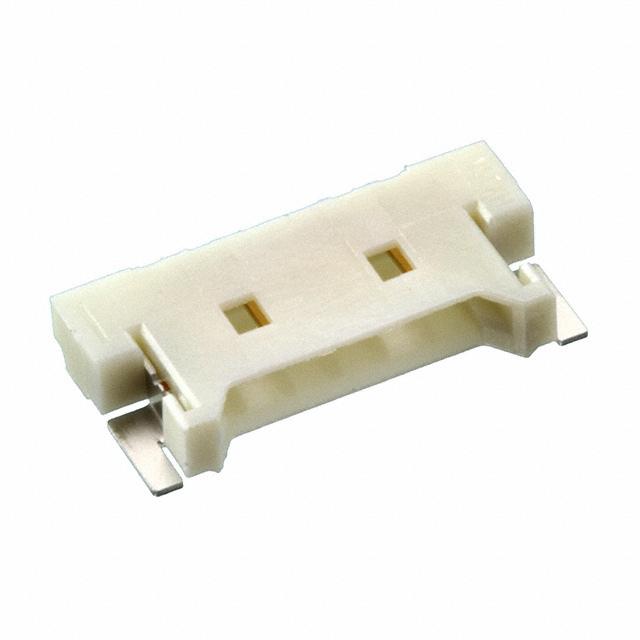

0537800570

1.25毫米（ .049 “ ）间距的PanelMate ™接头，表面贴装，直角， 1.90毫米075 ” ）的高度，无铅， 5电路 1.25mm .049" Pitch PanelMate™ Header, Surface Mount, Right Angle, 1.90mm 075" Height, Lead-free, 5 Circuits

针座 表面贴装，直角 5 位置 0.049"（1.25mm）

得捷:
CONN HEADER SMD R/A 5POS 1.25MM

艾睿:
This wire to board 0537800570 header connector from Molex reduces the possibility of accidentally shorting pins when a board is being used. This HDR connector&s;s 5 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a right angle body orientation. This is a 1-row connector. It has a maximum voltage rating of 125 V. Its pitch is 1.25 mm. It has a header type gender. This device has a maximum current rating of 1 A/contact. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This product is 11.4 mm long, 1.85 mm tall and 5.5 mm deep. It uses the solder termination method. 0537800570 is housed in natural polyphenylene sulfide. This connector has an operating temperature of -40 to 85 °C.

安富利:
Conn Wire to Board HDR 5 POS 1.25mm Solder RA SMD Embossed T/R

Chip1Stop:
Conn Wire to Board HDR 5 POS 1.25mm Solder RA SMD Embossed T/R

Verical:
Conn Wire to Board HDR 5 POS 1.25mm Solder RA Side Entry SMD PanelMate™
