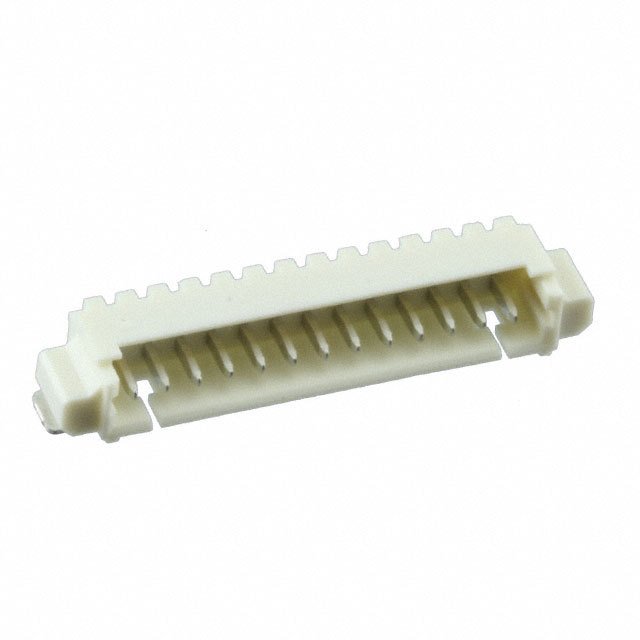

1.25毫米（ .049 “ ）间距PicoBlade ™接头，表面贴装，直角，无铅， 13Circuits 1.25mm .049" Pitch PicoBlade™ Header, Surface Mount, Right Angle, Lead-free, 13Circuits
Connector Header Surface Mount, Right Angle 13 position 0.049" 1.25mm
得捷:
CONN HEADER SMD R/A 13POS 1.25MM
艾睿:
Reduce the possibility of accidentally shorting pins when using a printed circuit board with this shrouded 0532611371 header connector from Molex. This HDR connector&s;s 13 contacts that are made out of phosphor bronze and plated with tin over nickel. Its pitch is 1.25 mm. It has a header type gender. It has a maximum voltage rating of 125 V. It has a right angle body orientation. This is a 1-row connector. This device has a maximum current rating of 1 A/contact. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. 0532611371 is housed in natural nylon 4/6. This product is 21.4 mm long, 3.4 mm tall and 5.2 mm deep. It uses the solder termination method. This connector has an operating temperature of -40 to 85 °C.
Verical:
Conn Shrouded Header 4 Sides HDR 13 POS 1.25mm Solder RA Side Entry SMD PicoBlade™ T/R
