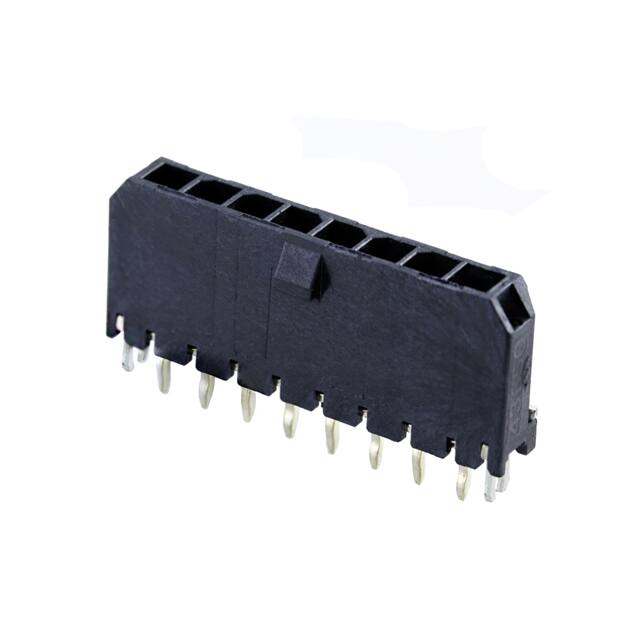

3.00毫米（ 0.118 “ ）间距微飞度3.0头，表面贴装兼容，单列，立式，带压接 3.00mm .118" Pitch Micro-Fit 3.0 Header, Surface Mount Compatible, Single Row, Vertical, with Press-fit
There won"t be any energy loss when you power up your circuit using the power connector from . This HDR connector"s 8 contacts that are made out of brass alloy and plated with gold over nickel. It has a straight body orientation. Its pitch is 3 mm. It has a maximum voltage rating of 600 V. This connector has a single port. It has a header type gender. 0436500819 is housed in thermoplastic. This device has a maximum current rating of 5 A/contact. This component comes in tray packaging, useful for fast picking and placing of your parts. This power connector has an operating temperature range of -40 °C to 105 °C. Its 8 terminals use the solder termination method. This product is 27.64 mm long, 9.9 mm tall and 5.57 mm deep.
