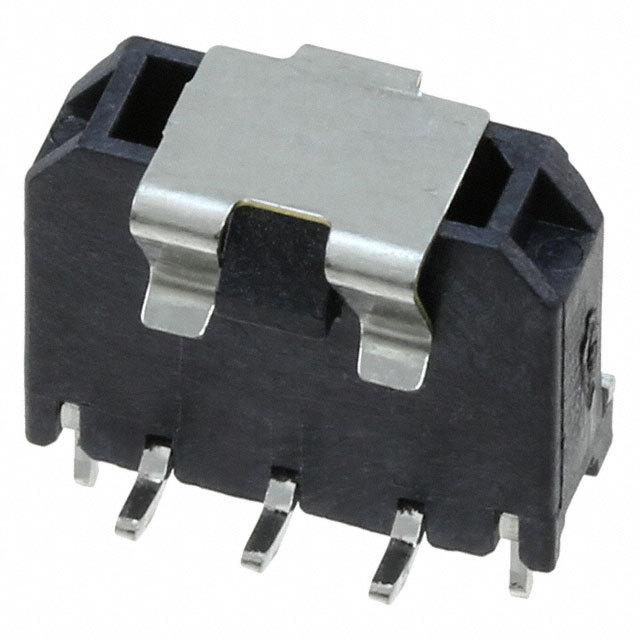

3.00毫米( 0.118 “ )间距微飞度3.0 ™接头,表面贴装兼容,单列,立式,带压入金属固定夹, 3电路 3.00mm .118" Pitch Micro-Fit 3.0™ Header, Surface Mount Compatible, Single Row, Vertical, with Press-fit Metal Retention Clip, 3 Circuits
This power connector from is ideal for powering up your circuit. This HDR connector"s 3 contacts that are made out of brass alloy and plated with bright tin over nickel. It has a maximum voltage rating of 600 V. Its pitch is 3 mm. This connector has a single port. It has a straight body orientation. It has a header type gender. 0436500321 is housed in thermoplastic. This device has a maximum current rating of 5 A/contact. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This power connector has a minimum operating temperature of -40 °C and a maximum of 105 °C. Its 3 terminals use the solder termination method. This product is 12.65 mm long, 9.9 mm tall and 5.57 mm deep.
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
0436500321 Molex 莫仕 | 当前型号 | 当前型号 |
0210200051 莫仕 | 功能相似 | 0436500321和0210200051的区别 |
