0440002.WR

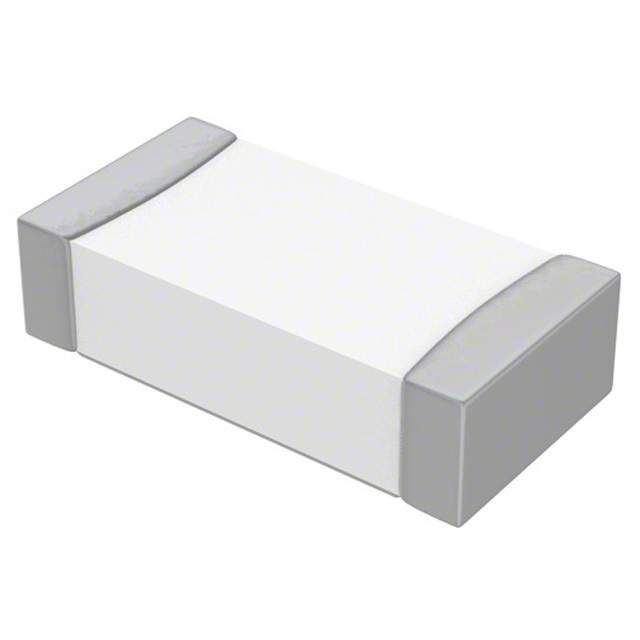

LITTELFUSE  0440002.WR  保险丝, SMD, 2A, 1206, 快熔型

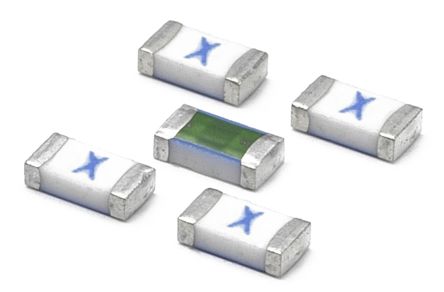

440 系列熔丝

Littelfuse 440 系列熔丝特别设计用于对在高达 150ºC 高工作温度和高起动电流下操作的电路提供过流保护。 特别适用于汽车电子、LCD 显示器、服务器、笔记本电脑、数据调制解调器、硬盘驱动器、打印机和扫描仪应用。

工作温度范围 -55°C 至 +150°C

100% 无铅且符合 RoHS，无卤

适用于含铅和无铅回流焊/波焊

超高 I²t 值

得捷:
FUSE BOARD MNT 2A 32VAC/VDC 1206

立创商城:
FUSE 32V High I2T 1206 2A

欧时:
Littelfuse 2A电流 F熔度 不可复位表面固定熔断器 0440002.WR, 3.2 x 1.63 x 0.8179mm, 32V ac/dc

e络盟:
保险丝, SMD, 2A, 1206, 快熔型

艾睿:
Be protected by adding a chip 0440002.WR fuse developed by Littelfuse. This device has a maximum power dissipation of 0.158Nom W. Its maximum power dissipation is 0.158Nom W. This device has a current rating of 2. This fuse has an operating temperature range of -55 °C to 150 °C. It has 2 terminals. The 0440002.WR fuse has a solder pad termination style. This product will be shipped in tape and reel packaging so that components can be mounted effectively. Mount your fuse on a printed circuit board using surface mount technology to produce the most effective results. This product is 3.2 mm long, 0.82 mm tall and 1.63 mm deep. Its fuse is made from ceramic. The maximum AC voltage rating is 32 VAC and the maximum DC voltage rating is 32 VDC.

Verical:
Fuse Chip Fast Acting 2A 32V SMD Solder Pad 1206 Ceramic T/R CSA/UL

Newark:
# LITTELFUSE  0440002.WR  Fuse, Surface Mount, 440 Series, 2 A, 32 VAC, 32 VDC, Fast Acting, 1206
