2.54毫米（ .100“ ）间距SL ™头，单排，直角， 0.120 ”口袋，带罩，带压入塑料钉， 8电路， 0.76μm （ 30μ “），金（Au ）选择性电镀，锡（ Sn）的PC端脚镀层 2.54mm .100" Pitch SL™ Header, Single Row, Right Angle, .120" Pocket, Shrouded, with Press-fit Plastic Peg, 8 Circuits, 0.76μm 30μ" Gold Au Selective Plating, Tin Sn PC Tail Plating
Connector Header Through Hole, Right Angle 8 position 0.100" 2.54mm
得捷:
CONN HEADER R/A 8POS 2.54MM
艾睿:

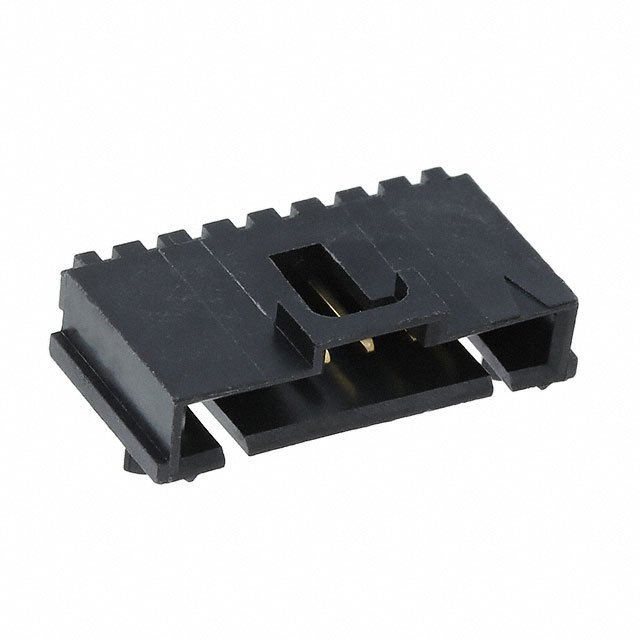

Look no further than the shrouded 0705550077 header connector from Molex, a great tool to use when board-to-board interconnects is required. This HDR connector&s;s 8 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a header type gender. It has a right angle body orientation. This is a 1-row connector. Its pitch is 2.54 mm. It has a maximum voltage rating of 250 V. This device has a maximum current rating of 3 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This product is 24.13 mm long, 6.99 mm tall and 13.59 mm deep. 0705550077 is housed in black polyester. It uses the solder termination method. This connector has an operating temperature of -40 to 105 °C.
安富利:
Conn Shrouded Header HDR 8 POS 2.54mm Solder RA Thru-Hole Tube
Chip1Stop:
Conn Shrouded Header HDR 8 POS 2.54mm Solder RA Thru-Hole Tube
Verical:
Conn Shrouded Header 4 Sides HDR 8 POS 2.54mm Solder RA Side Entry Thru-Hole SL™ Tube
