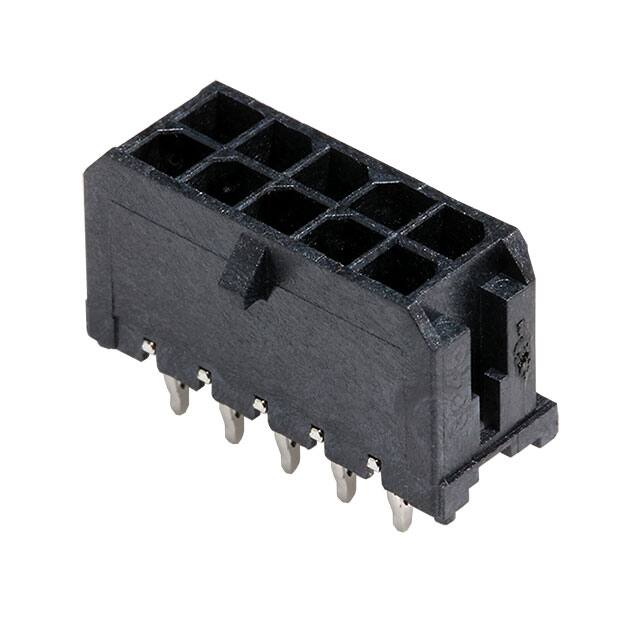

3.00毫米（ 0.118 “ ）间距微飞度3.0的CPI ™接头，兼容引脚接口，双排，垂直， 10电路，锡（Sn ）镀层，灼热丝兼容 3.00mm .118" Pitch Micro-Fit 3.0 CPI™ Header, Compliant Pin Interface, Dual Row, Vertical, 10 Circuits, Tin Sn Plating, Glow Wire Compatible
Connector Header Through Hole 10 position 0.118" 3.00mm
得捷:
MICROFIT 3.0 HDR VERT CPI 10CKT
艾睿:
The 0449141001 power connector from Molex is perfect for powering your circuit because it comes with the least amount of losses. This HDR connector&s;s 10 contacts that are made out of copper alloy and plated with tin over nickel. This connector has a single port. It has a maximum voltage rating of 600 V. Its pitch is 3 mm. It has a header type gender. It has a straight body orientation. 0449141001 is housed in liquid crystal polymer. This device has a maximum current rating of 5 A/contact. This component will be shipped in tray format. Its 10 terminals use the press fit termination method. This product is 18.65 mm long, 9.91 mm tall and 8.77 mm deep. This power connector has a minimum operating temperature of -40 °C and a maximum of 105 °C.
Chip1Stop:
Conn Wire to Board PIN 10 POS 3mm Solder ST Thru-Hole Tray
