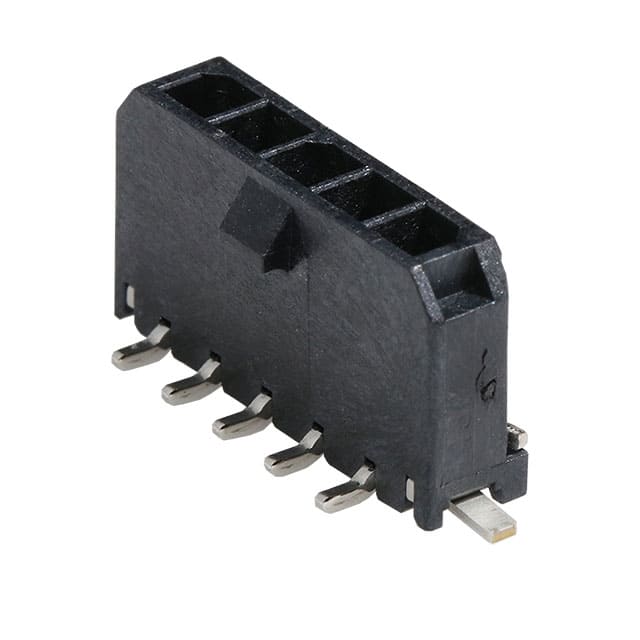

3.00毫米（ 0.118 “ ）间距微飞度3.0头，表面贴装兼容，单列，立式，带焊片 3.00mm .118" Pitch Micro-Fit 3.0 Header, Surface Mount Compatible, Single Row, Vertical, with Solder Tab
针座 表面贴装型 5 位置 0.118"（3.00mm）
得捷:
MICROFIT 3.0 SR VERT SMT NAIL
艾睿:
Harsh and stressful environments are no match for this robust 0436500526 power connector from Molex. This HDR connector&s;s 5 contacts that are made out of brass alloy and plated with gold over nickel. It has a header type gender. It has a maximum voltage rating of 600 V. Its pitch is 3 mm. It has a straight body orientation. This connector has a single port. This device has a maximum current rating of 5 A/contact. 0436500526 is housed in liquid crystal polymer. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. Its 5 terminals use the solder termination method. This power connector has an operating temperature range of -40 °C to 105 °C. This product is 22.64 mm long, 9.9 mm tall and 5.57 mm deep.
Verical:
Conn Wire to Board HDR 5 POS 3mm Solder ST SMD T/R
