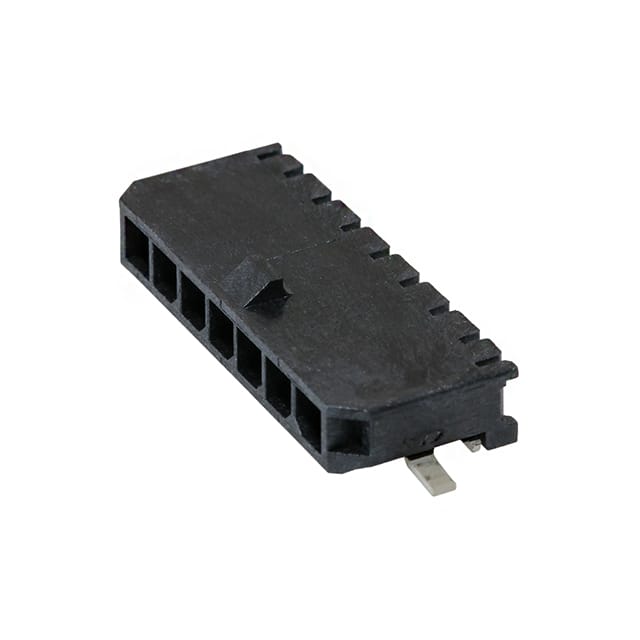

3.00毫米（ 0.118 “ ）间距微飞度3.0 ™接头，表面贴装兼容，单列，直角，用焊片， 7电路， 0.38μm （ 15μ ”），金（Au ）选择性电镀，灼热丝兼容 3.00mm .118" Pitch Micro-Fit 3.0™ Header, Surface Mount Compatible, Single Row,Right Angle, with Solder Tab, 7 Circuits, 0.38μm 15μ" Gold Au Selective Plating,Glow Wire Compatible
针座 表面贴装，直角 7 位置 0.118"（3.00mm）
得捷:
CONN HEADER SMD R/A 7POS 3MM
艾睿:
Use the 0436500713 power connector from Molex to power up your circuit with the least amount of losses. This HDR connector&s;s 7 contacts that are made out of brass alloy and plated with gold over nickel. It has a header type gender. It has a maximum voltage rating of 600 V. Its pitch is 3 mm. It has a right angle body orientation. This connector has a single port. 0436500713 is housed in liquid crystal polymer. This device has a maximum current rating of 5 A/contact. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This power connector has a minimum operating temperature of -40 °C and a maximum of 105 °C. Its 7 terminals use the solder termination method. This product is 28.65 mm long, 5.57 mm tall and 9.9 mm deep.
安富利:
Conn Wire to Board HDR 7 POS 3mm Solder RA SMD T/R
