0874272042

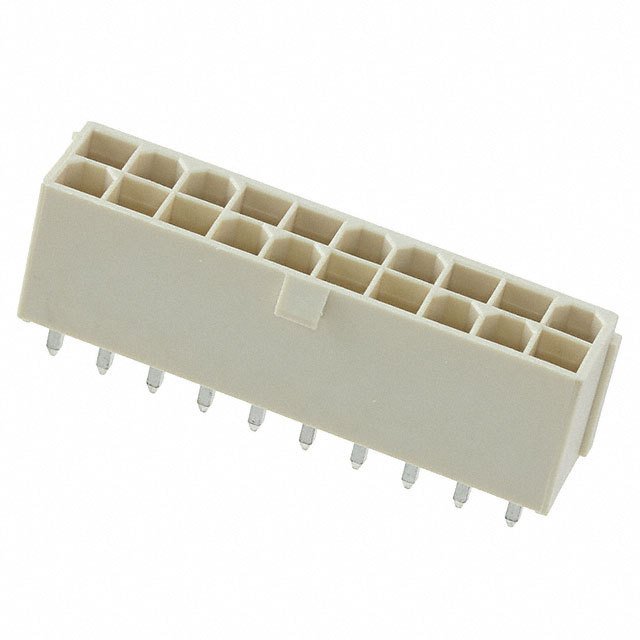

4.20毫米（ 0.165 “ ）的Mini-适合小头，垂直，尼龙，没有法兰， 20Circuits ，锡（Sn ），镍（ Ni）镀层 4.20mm .165" Mini-Fit Jr. Header, Vertical, Nylon, without Flange, 20Circuits, Tin Sn over Nickel Ni Plating

针座 通孔 20 位置 0.165"（4.20mm）

得捷:
CONN HEADER VERT 20POS 4.2MM

艾睿:
This specially engineered 0874272042 power connector from Molex is designed for various high voltage and current supplies. This HDR connector&s;s 20 contacts that are made out of brass and plated with tin over nickel. It has a straight body orientation. It has a maximum voltage rating of 600 V. This connector has a single port. It has a header type gender. Its pitch is 4.2 mm. This device has a maximum current rating of 13 A/contact. 0874272042 is housed in thermoplastic. This component will be shipped in tray format. This power connector has an operating temperature range of -40 °C to 105 °C. Its 20 terminals use the solder termination method. This product is 44.4 mm long, 13.5 mm tall and 11.4 mm deep.

安富利:
Conn Wire to Board HDR 20 POS 4.2mm Solder ST Thru-Hole Tray

Verical:
Conn Wire to Board HDR 20 POS 4.2mm Solder ST Top Entry Thru-Hole Mini-Fit Jr™ Bag
