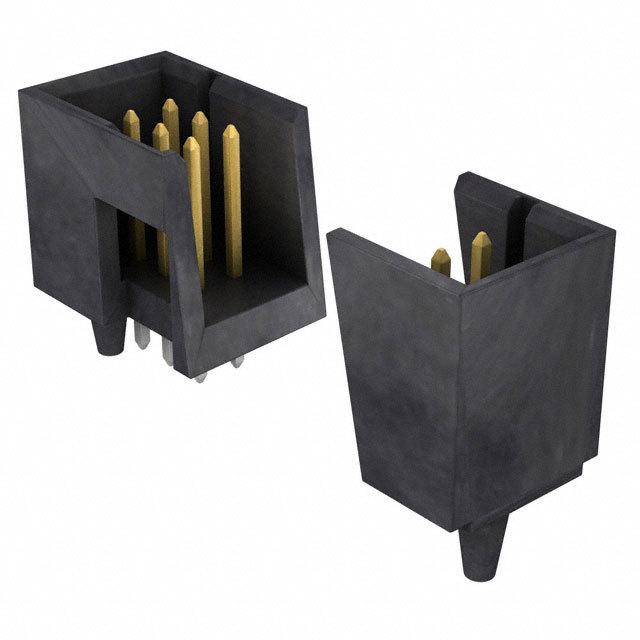

2.54毫米（ .100 ）间距C- Grid®头，通孔，双排，垂直，高温，罩，用PEG ， 12电路， 0.38μm （ 15μ ），金（Au ）选择性电镀，锡（Sn ） PC尾电镀 2.54mm .100 Pitch C-Grid® Header, Through Hole, Dual Row, Vertical, High Temperature, Shrouded, with Peg, 12 Circuits, 0.38μm 15μ Gold Au Selective Plating, Tin Sn PC Tail Plating
Connector Header Through Hole 12 position 0.100" 2.54mm
得捷:
CONN HEADER 12POS VERT GOLD T/H
艾睿:
Are you looking for a solution to support physical configuration options on your PCB? Then mount this shrouded 0015477612 header connector from Molex on your PCB today! This HDR connector&s;s 12 contacts that are made out of copper alloy and plated with gold over nickel. This is a 2-row connector. It has a header type gender. Its pitch is 2.54 mm. It has a maximum voltage rating of 250 V. It has a straight body orientation. This device has a maximum current rating of 2.5 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. It uses the solder termination method. This product is 12.07 mm tall. 0015477612 is housed in black liquid crystal polymer. This connector has an operating temperature of -55 to 105 °C.
安富利:
Conn Shrouded Header HDR 12 POS 2.54mm Solder ST Thru-Hole Tube
