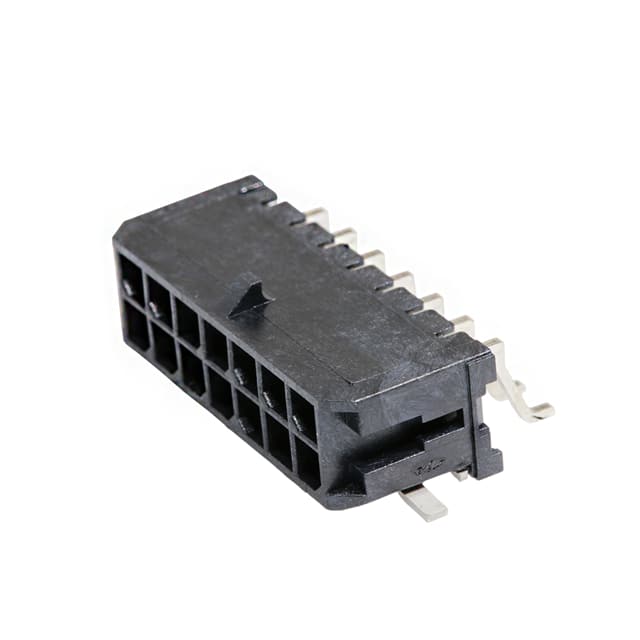

3.00毫米（ 0.118 “ ）间距微飞度3.0 ™接头，表面贴装，双排，直角，用焊片，电路14 3.00mm .118" Pitch Micro-Fit 3.0™ Header, Surface Mount, Dual Row, Right Angle, with Solder Tab, 14 Circuits
针座 表面贴装，直角 14 位置 0.118"（3.00mm）
得捷:
CONN HEADER SMD R/A 14POS 3MM
艾睿:
Mounting this wire to board 0430451410 header connector from Molex to your printed circuit board can help you support multiple physical configuration options. This HDR connector&s;s 14 contacts that are made out of brass alloy and plated with gold over nickel. It has a header type gender. This is a 2-row connector. It has a maximum voltage rating of 600 V. It has a right angle body orientation. Its pitch is 3 mm. This device has a maximum current rating of 5 A/contact. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. 0430451410 is housed in black liquid crystal polymer. It uses the solder termination method. This product is 25.15 mm long, 8.77 mm tall and 15.4 mm deep. This connector has an operating temperature of -40 to 105 °C.
