0039301221

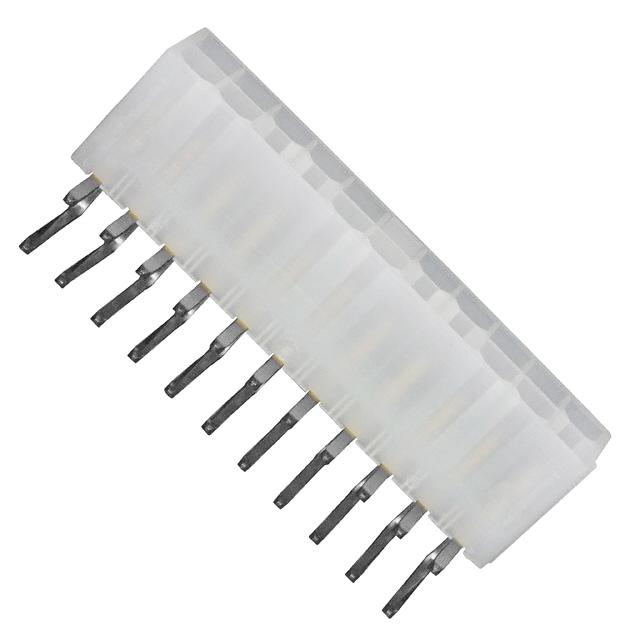

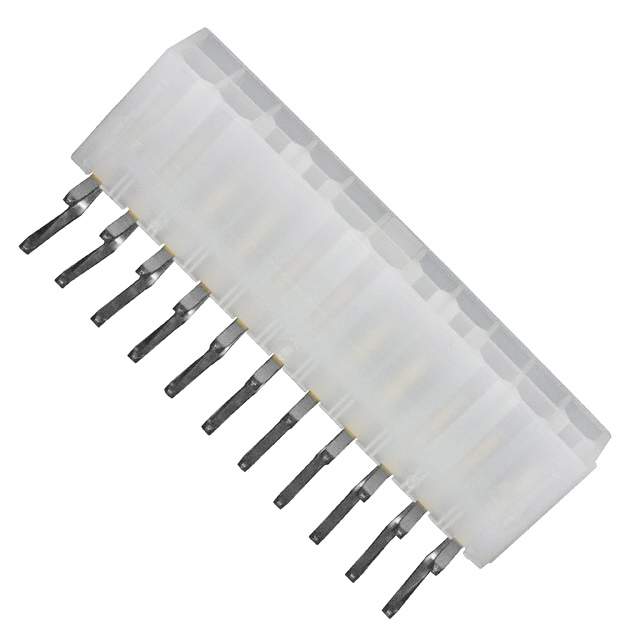

4.20毫米（ .165 “ ）间距迷你小飞度™插头，双排，直角，以管理单元塑料栓锁电路板，电路22 ，PA聚酰胺尼龙6/6 94V - 2 ， 0.76μm （ 30μ ” ）金（Au ）镀层 4.20mm .165" Pitch Mini-Fit Jr.™ Header, Dual Row, Right Angle, with Snap-in Plastic Peg PCB Lock, 22 Circuits, PA Polyamide Nylon 6/6 94V-2, 0.76μm 30μ" Gold Au Plating

Connector Header Through Hole, Right Angle 22 position 0.165" 4.20mm

得捷:
CONN HEADER R/A 22POS 4.2MM

艾睿:
The best way to get minimal losses of power in your circuit is by operating it with the 0039301221 power connector from Molex. This HDR connector&s;s 22 contacts that are made out of brass alloy and plated with gold over nickel. It has a header type gender. Its pitch is 4.2 mm. It has a maximum voltage rating of 600 V. This connector has a single port. It has a right angle body orientation. 0039301221 is housed in polyamide 6/6. This device has a maximum current rating of 13 A/contact. This power connector has an operating temperature range of -40 °C to 105 °C. This product is 47.4 mm long and 19.4 mm. Its 22 terminals use the solder termination method.
