0438790065

24 位 接头，有罩 连接器 0.165"（4.20mm） 通孔 金

针座 通孔 24 位置 0.165"（4.20mm）

得捷:
CONN HEADER VERT 24POS 4.2MM

艾睿:

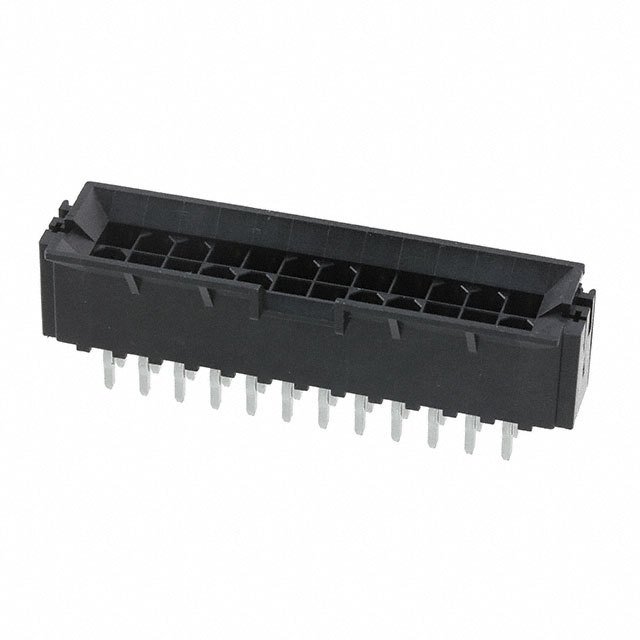

Do you need to connect a power supply to a circuit? Then this 0438790065 power connector from Molex is perfect for you! This HDR connector&s;s 24 contacts that are made out of phosphor bronze and plated with gold over nickel. Its pitch is 4.2 mm. It has a maximum voltage rating of 600 V. This connector has a single port. It has a straight body orientation. It has a header type gender. This device has a maximum current rating of 8 A/contact. 0438790065 is housed in nylon. The item will be shipped in tray orientation. This product is 60.81 mm long, 14.9 mm tall and 15 mm deep. Its 24 terminals use the press fit termination method. This power connector has a minimum operating temperature of -40 °C and a maximum of 105 °C.

Verical:
Conn Wire to Board HDR 24Power POS 4.2mm Press Fit ST Top Entry Thru-Hole Mini-Fit BMI Tray
