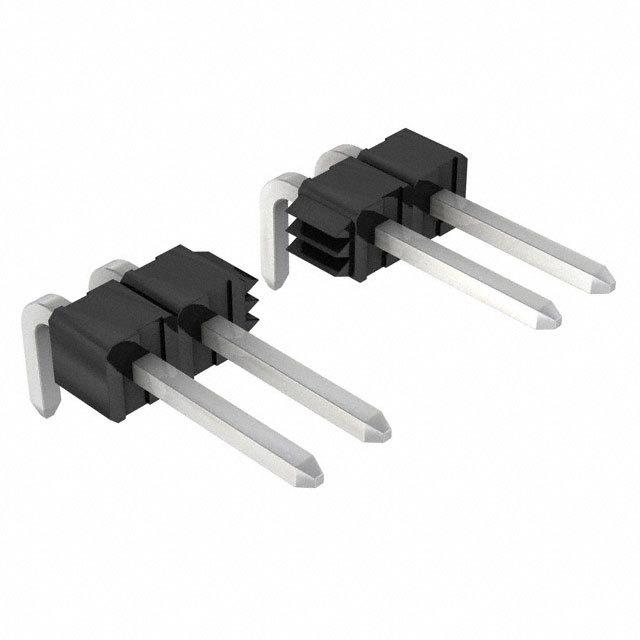

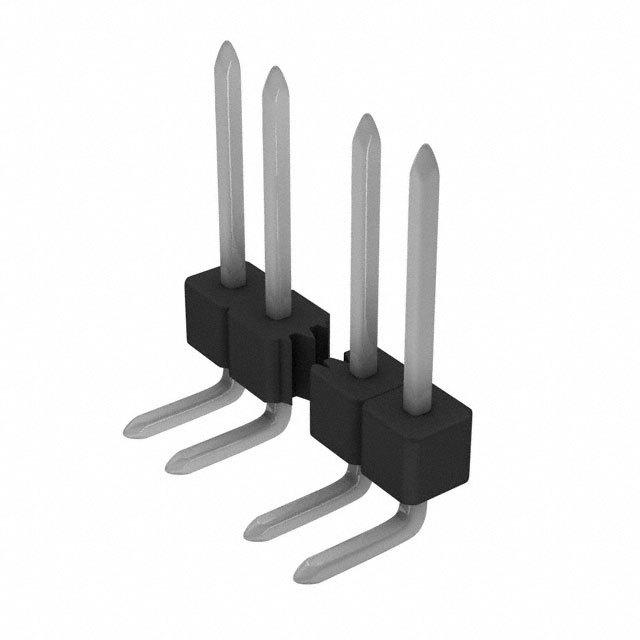

2.54毫米（ .100“ ）间距KK®头，分离式，直角式表面焊接， 9电路，锡（Sn ）镀层，配合针脚长度8.23毫米（ .324 ” ） 2.54mm .100" Pitch KK® Header, Breakaway, Right Angle Surface Mount Compatible, 9 Circuits, Tin Sn Plating, Mating Pin Length 8.23mm .324"
Connector Header Through Hole, Right Angle 9 position 0.100" 2.54mm
得捷:
CONN HEADER R/A 9POS 2.54MM
艾睿:
Easily mount this unshrouded 0022288091 header connector from Molex onto your PCB project to support a variety of physical configuration options. This HDR connector&s;s 9 contacts that are made out of brass and plated with tin over nickel. It has a header type gender. It has a right angle body orientation. This is a 1-row connector. It has a maximum voltage rating of 250 V. Its pitch is 2.54 mm. This device has a maximum current rating of 4 A/contact. It uses the solder termination method. This connector has an operating temperature of -40 to 80 °C. 0022288091 is housed in black nylon. This product is 22.86 mm long, 2.49 mm tall and 12.3 mm deep.
