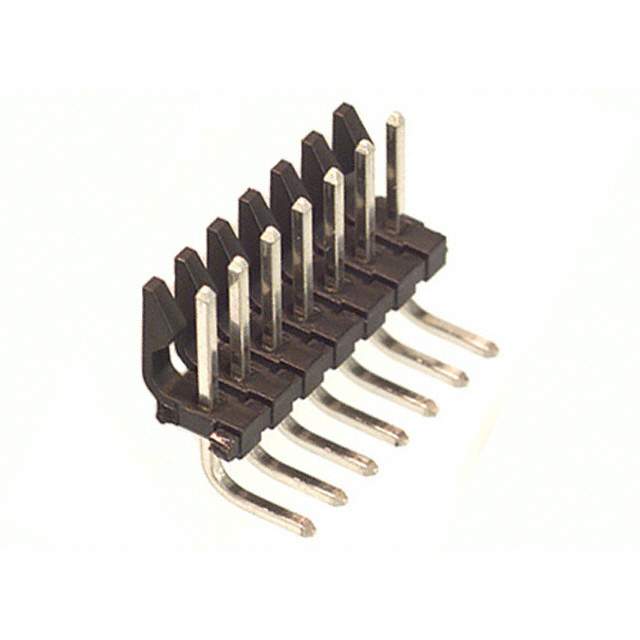

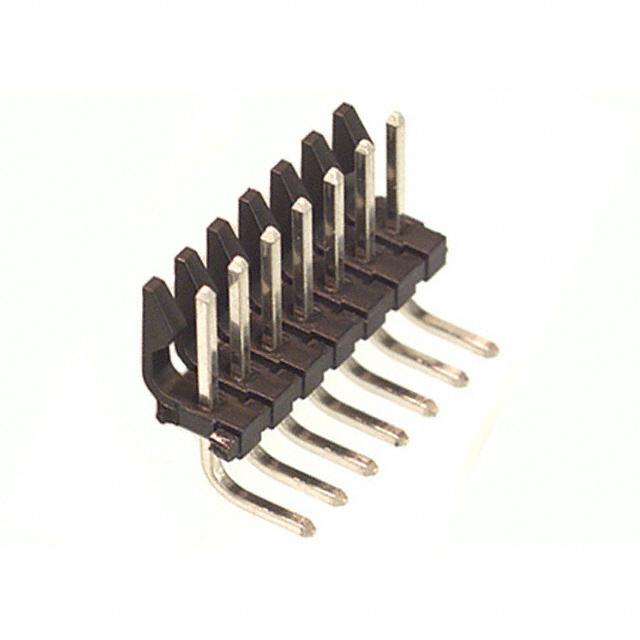

3.96毫米（ .156 “ ）间距KK®头，分离式，直角，用摩擦锁， 7电路，锡（Sn ）镀层 3.96mm .156" Pitch KK® Header, Breakaway, Right Angle, with Friction Lock, 7 Circuits, Tin Sn Plating
Connector Header Through Hole, Right Angle 7 position 0.156" 3.96mm
得捷:
CONN HEADER R/A 7POS 3.96MM
艾睿:
Safety is an important concern when designing electronic devices. Molex&s;s wire to board 0026481076 header connector helps protect your equipment from accidental shortages. This HDR connector&s;s 7 contacts that are made out of brass and plated with tin over copper. It has a maximum voltage rating of 250 V. This is a 1-row connector. It has a right angle body orientation. It has a header type gender. Its pitch is 3.96 mm. This device has a maximum current rating of 7 A/contact. This product is 27.69 mm long and 20.29 mm. This connector has an operating temperature of -40 to 80 °C. It uses the solder termination method. 0026481076 is housed in black polyester.
安富利:
Conn Wire to Board HDR 7 POS 3.96mm Solder RA Thru-Hole Bag
