09 0305 00 03概述

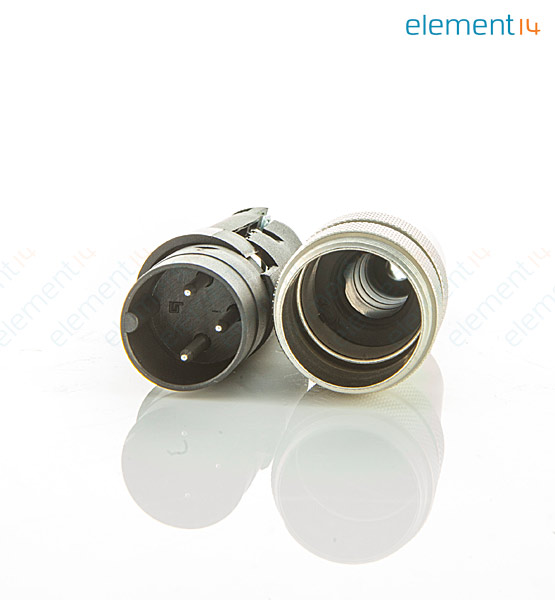

BINDER  09 0305 00 03  圆形连接器, 680系列, 插头, 3 触点, 公, 焊接, 电缆安装

The is a 3-contact 250V/7A unshielded straight miniature male Circular Connector with silver-plated brass contacts, PBT UL94V-0 contact body, PA UL94 HB housing. The 680 series plug with M16 screw locking system, solder termination for easy shield or ground connection, cable-mounted style. It accepts 20AWG 0.75mm² wire. It has integral bend protection sleeve.

.
1500V Rated impulse voltage
.
* >500 mating cycles Mechanical operation
.
IP40 Protection rating
09 0305 00 03中文资料参数规格
技术参数

触点数 3

极性 Male

触点电镀 Silver

额定电压AC 250 V

额定电流 7.00 A

接触电阻 5.00 mΩ

封装参数

安装方式 Solder

物理参数

触点材质 Brass

材质 Brass

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

REACH SVHC版本 2016/06/20

数据手册

在线购买09 0305 00 03
型号: 09 0305 00 03
制造商: Binder
描述:BINDER  09 0305 00 03  圆形连接器, 680系列, 插头, 3 触点, 公, 焊接, 电缆安装
