0923150610概述

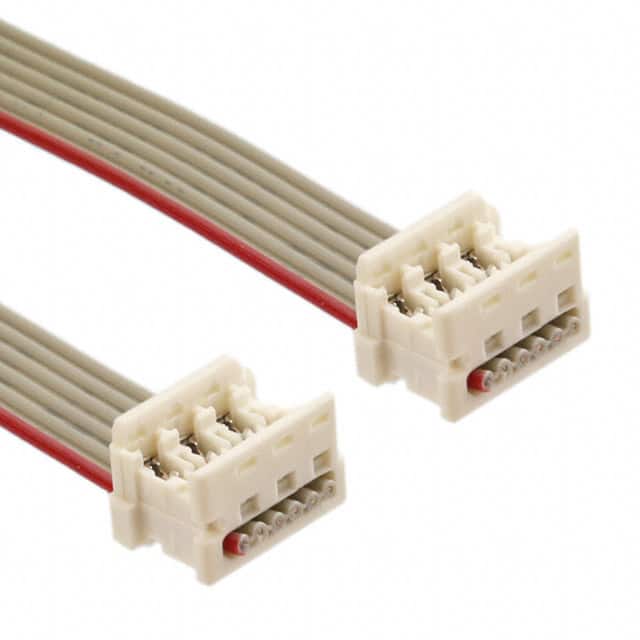

PICOFLEX PF- 50 IDT对IDT , 6电路, 0.10米( 3.94 “ )长度 Picoflex PF-50 IDT-to-IDT, 6 Circuits, 0.10m 3.94" Length

Create a wide and flat cable connection with equally spaced connections with this flat ribbon cable assembly from . Its cable is 0.1 m long. This device has a maximum current rating of 1.2 A. This has a Picoflex to Picoflex connector. This part has a temperature range of -20 °C to 105 °C.

0923150610中文资料参数规格
技术参数

排数 2

针脚数 6

额定电流Max 1.2 A

工作温度Max 105 ℃

工作温度Min -20 ℃

额定电压Max 250 V

外形尺寸

长度 100.00 mm

电缆长度 0.1 m

物理参数

触点材质 Phosphor Bronze Alloy

工作温度 -20℃ ~ 105℃

其他

产品生命周期 Unknown

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

数据手册

在线购买0923150610
型号: 0923150610
制造商: Molex 莫仕
描述:PICOFLEX PF- 50 IDT对IDT , 6电路, 0.10米( 3.94 “ )长度 Picoflex PF-50 IDT-to-IDT, 6 Circuits, 0.10m 3.94" Length
