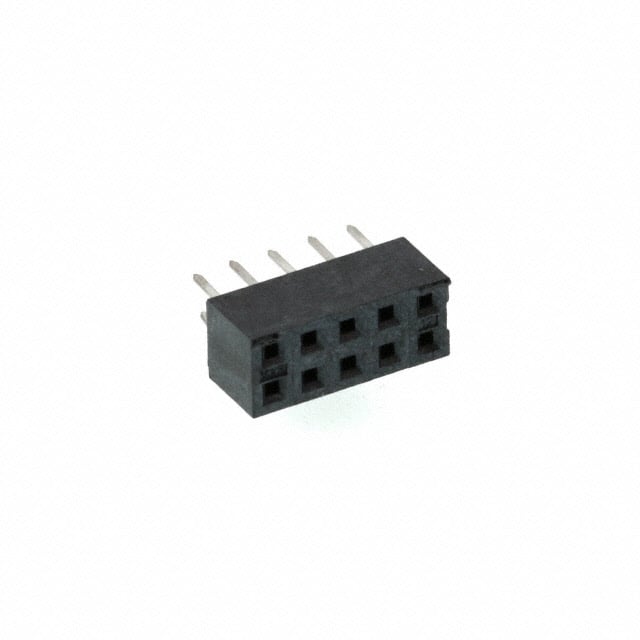

2.00毫米( 0.079 )间距的Milli-电网™插座,垂直,通孔,双排, 3.00毫米( 0.118 ),尾长, 0.38μm ( 15μ ),金(Au )选择性电镀 2.00mm .079 Pitch Milli-Grid™ Receptacle, Vertical, Through Hole, Dual Row, 3.00mm .118 Tail Length, 0.38μm 15μ Gold Au Selective Plating
10 Position Receptacle Connector Through Hole
得捷:
CONN RCPT 10POS 0.079 GOLD PCB
立创商城:
2mm
贸泽:
Headers & Wire Housings 2.00MM REC 02X05P VT TH 15AU
艾睿:
Thanks to Molex&s;s socket strip 0791077004 header connector, you can reduce the possibility of accidentally shorting out any pins on your printed circuit. This RCP connector&s;s 10 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a receptacle type gender. Its pitch is 2 mm. This is a 2-row connector. It has a straight body orientation. It has a maximum voltage rating of 125 V. This device has a maximum current rating of 1 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This connector has an operating temperature of -55 to 105 °C. This product is 10.19 mm long, 4.44 mm tall and 4.19 mm deep. It uses the solder termination method. 0791077004 is housed in black glass filled high temperature thermoplastic.
安富利:
Conn Socket Strip RCP 10 POS 2mm Solder ST Thru-Hole Tube
Verical:
Conn Socket Strip RCP 10 POS 2mm Solder ST Thru-Hole Milli-Grid™ Tube
触点数 10
排数 2
针脚数 10
拔插次数 50
额定电流Max 1A/触头
工作温度Max 105 ℃
工作温度Min -55 ℃
额定电压Max 125 V
额定电压 125 V
接触电阻Max 25 mΩ
安装方式 Through Hole
封装 -
高度 4.44 mm
封装 -
外壳颜色 Black
颜色 Black
触点材质 Phosphor Bronze
工作温度 -55℃ ~ 125℃
产品生命周期 Unknown
包装方式 Tube
制造应用 汽车,通用,电信, Automotive,General Purpose,Telecommunications
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
0791077004 Molex 莫仕 | 当前型号 | 当前型号 |
79107-0004 莫仕 | 完全替代 | 0791077004和79107-0004的区别 |
