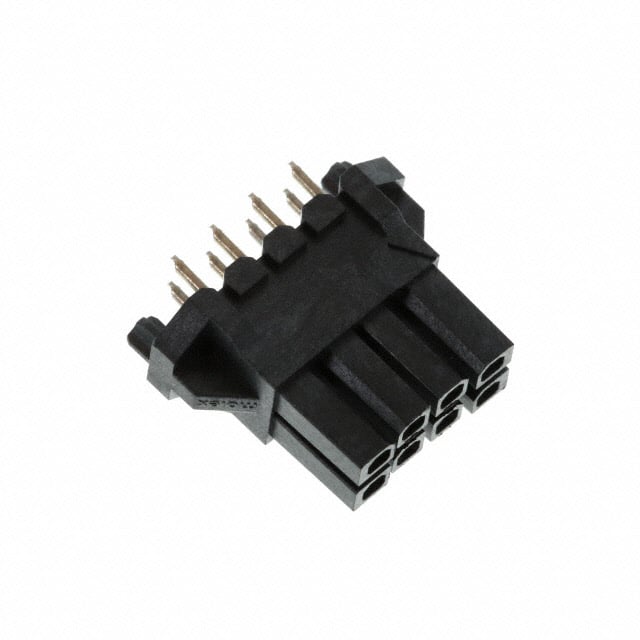

3.00毫米（ 0.118 “ ）间距微飞度3.0 ， BMI ™插座头，双排，垂直，用压装的塑料钉， 2.54μm （ 100μ ”），锡（Sn ） ， 8电路 3.00mm .118" Pitch Micro-Fit 3.0, BMI™ Receptacle Header, Dual Row, Vertical, with Press-fit Plastic Pegs, 2.54μm 100μ" Tin Sn, 8 Circuits
8 位置 插座 0.118"（3.00mm） 通孔 锡
得捷:
CONN RCPT 8POS 0.118 TIN PCB
艾睿:

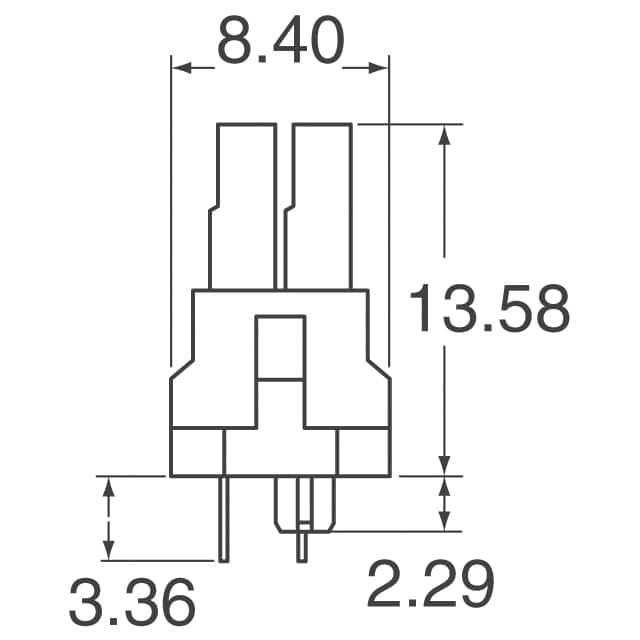

Are you looking for a solution to support physical configuration options on your PCB? Then mount this wire to board 0447690801 header connector from Molex on your PCB today! This RCP connector&s;s 8 contacts that are made out of phosphor bronze and plated with tin over nickel. This is a 2-row connector. It has a maximum voltage rating of 250 VAC. Its pitch is 3 mm. It has a straight body orientation. It has a receptacle type gender. This device has a maximum current rating of 5 A/contact. The component will be shipped in tray format. This product is 18 mm long, 13.6 mm tall and 8.4 mm deep. This connector has an operating temperature of -40 to 105 °C. 0447690801 is housed in black nylon 6/6. It uses the solder termination method.
