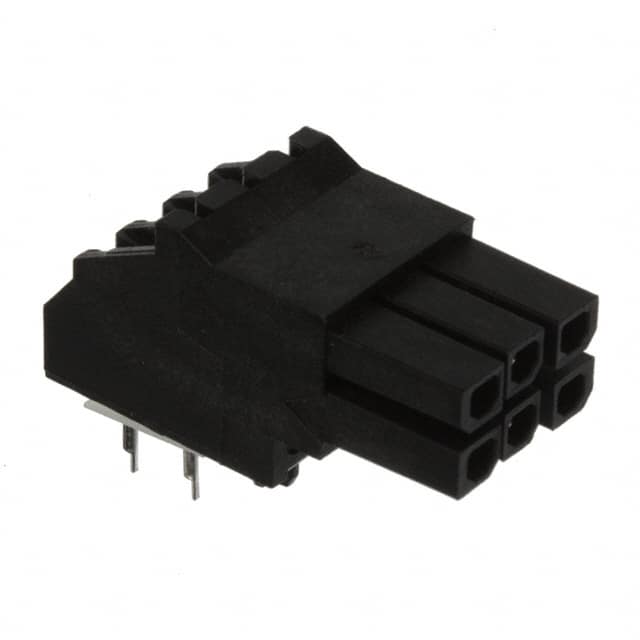

3.00毫米（ 0.118 “ ）间距微飞度3.0 ， BMI ™插座头，双排，直角，带压入塑料钉， 2.54μm （ 100μ ”），锡（Sn ） ， 6电路 3.00mm .118" Pitch Micro-Fit 3.0, BMI™ Receptacle Header, Dual Row, Right Angle,with Press-fit Plastic Pegs, 2.54μm 100μ" Tin Sn, 6 Circuits
6 位置 插座 0.118"（3.00mm） 通孔，直角 锡
得捷:
CONN RCPT 6POS 0.118 TIN PCB R/A
艾睿:

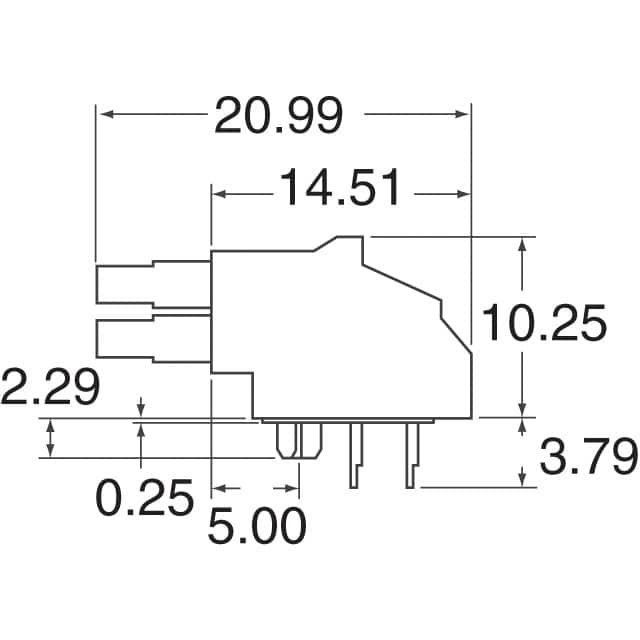

Reduce the possibility of accidentally shorting pins when using a printed circuit board with this wire to board 0447640601 header connector from Molex. This RCP connector&s;s 6 contacts that are made out of phosphor bronze and plated with tin. It has a right angle body orientation. It has a receptacle type gender. Its pitch is 3 mm. It has a maximum voltage rating of 600 V. This is a 2-row connector. This device has a maximum current rating of 5 A/contact. This component will be shipped in tray format. This product is 9.7 mm long, 10.45 mm tall and 21 mm deep. 0447640601 is housed in natural nylon 6/6. This connector has an operating temperature of -40 to 105 °C. It uses the solder termination method.
