0791091003

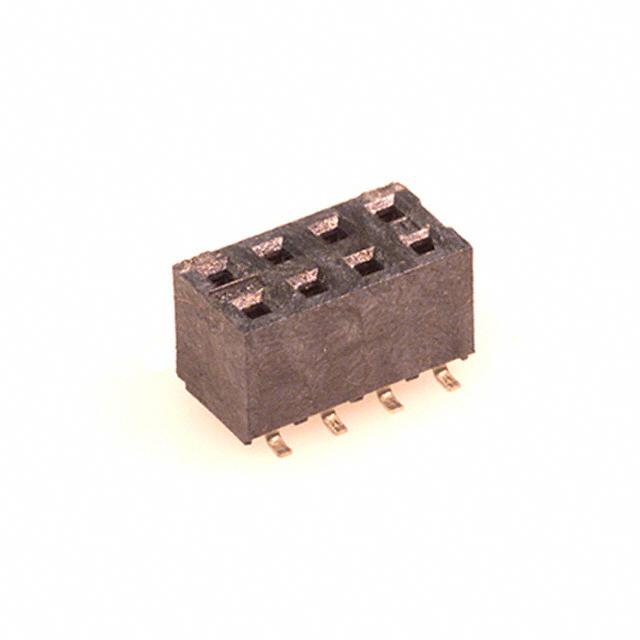

2.00毫米（ .079 “ ）间距的Milli-电网插座，表面贴装，垂直，顶部/底部进入 2.00mm .079" Pitch Milli-Grid Receptacle, Surface Mount, Vertical, Top/Bottom Entry

8 Position Receptacle Connector Surface Mount

得捷:
CONN RCPT 8POS 0.079 GOLD SMD

艾睿:
Molex&s;s socket strip 0791091003 header connector is a great way to reduce safety concerns in projects where there is a possibility of accidentally shorting electronic components. This RCP connector&s;s 8 contacts that are made out of phosphor bronze and plated with gold over nickel. Its pitch is 2 mm. It has a straight body orientation. It has a receptacle type gender. It has a maximum voltage rating of 125 V. This is a 2-row connector. This device has a maximum current rating of 1 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This connector has an operating temperature of -55 to 105 °C. This product is 8.19 mm long, 4.65 mm tall and 4.19 mm deep. 0791091003 is housed in black liquid crystal polymer. It uses the solder termination method.
