0448120003

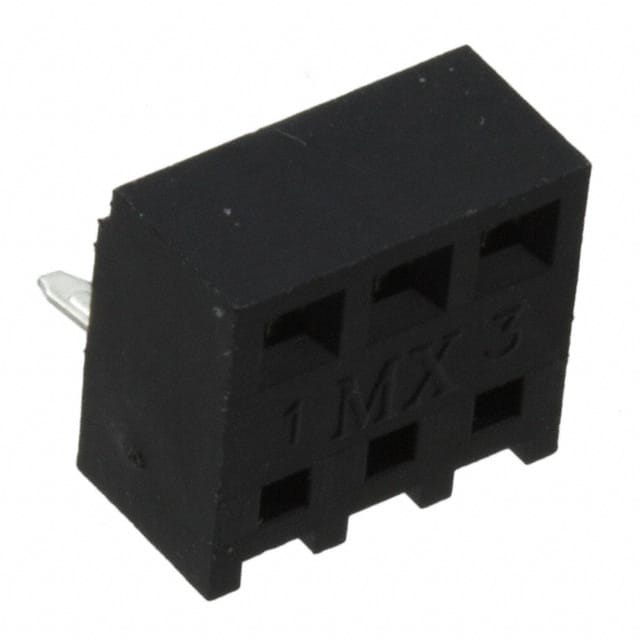

2.54毫米（ .100“ ）间距KK® PC板插座，顶部和底部进入，低调， 5.0μM （ 200μ ”），锡（Sn ） ， 3电路 2.54mm .100" Pitch KK® PC Board Receptacle, Top and Bottom Entry, Low Profile, 5.0μm 200μ" Tin Sn, 3 Circuits

3 位置 插座，底部或顶部插入 0.100"（2.54mm） 通孔 锡

得捷:
CONN RCPT 3POS 0.1 TIN PCB

立创商城:
2.54mm

艾睿:
Support physical configuration options for jumper posts by mounting this socket strip 0448120003 header connector from Molex. This RCP connector&s;s 3 contacts that are made out of copper alloy and plated with tin. Its pitch is 2.54 mm. This is a 1-row connector. It has a receptacle type gender. It has a straight body orientation. It has a maximum voltage rating of 250 V. This device has a maximum current rating of 5 A/contact. This component will be shipped in tray format. It uses the solder termination method. 0448120003 is housed in black nylon. This connector has an operating temperature of 0 to 105 °C. This product is 8.38 mm long, 4.5 mm tall and 7.5 mm deep.

安富利:
Conn Socket Strip RCP 3 POS 2.54mm Solder ST Thru-Hole Tray
