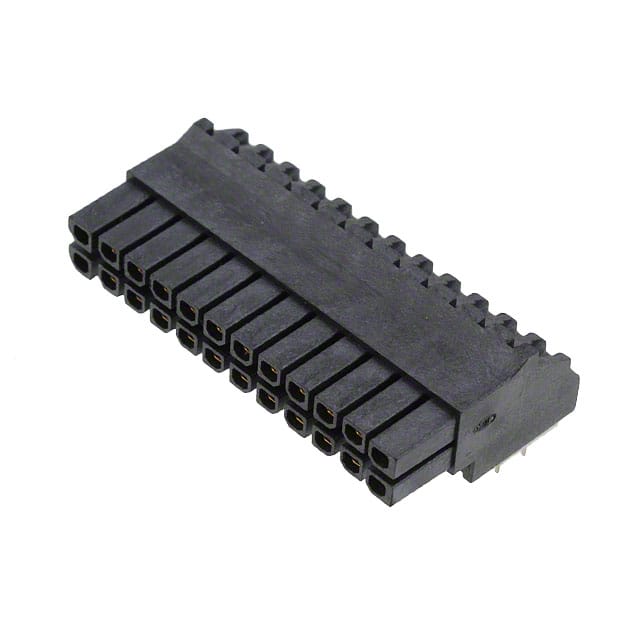

3.00毫米（ 0.118 “ ）间距微飞度3.0 ， BMI插座头，双排，直角，用压接 3.00mm .118" Pitch Micro-Fit 3.0, BMI Receptacle Header, Dual Row, Right Angle, with Press-fit
24 位置 插座 0.118"（3.00mm） 通孔，直角 镀金
得捷:
CONN RCPT 24P 0.118 GOLD PCB R/A
艾睿:
Thanks to Molex&s;s wire to board 0447642403 header connector, you can reduce the possibility of accidentally shorting out any pins on your printed circuit. This RCP connector&s;s 24 contacts that are made out of phosphor bronze and plated with gold. It has a maximum voltage rating of 600 V. This is a 2-row connector. It has a right angle body orientation. Its pitch is 3 mm. It has a receptacle type gender. This device has a maximum current rating of 5 A/contact. This component comes in tray packaging, useful for fast picking and placing of your parts. It uses the solder termination method. This product is 36.7 mm long, 10.2 mm tall and 21 mm deep. 0447642403 is housed in black nylon. This connector has an operating temperature of -40 to 105 °C.
安富利:
Conn Wire to Board RCP 24 POS 3mm Solder RA Thru-Hole Tray
