0009484088

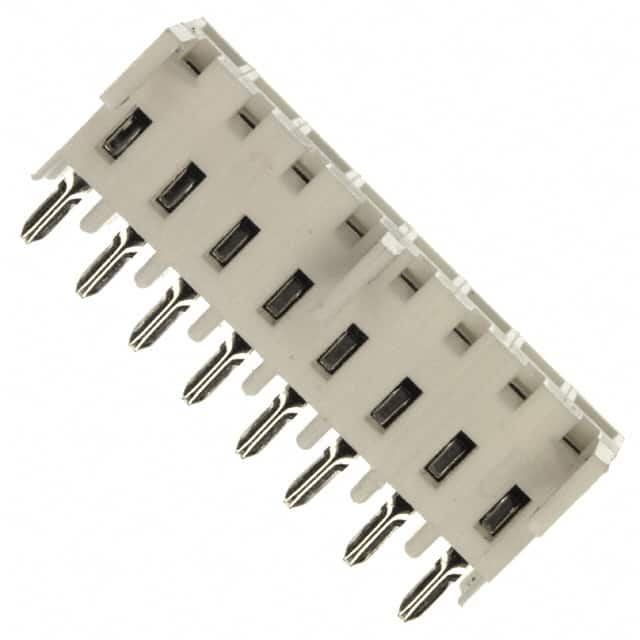

3.96毫米（ .156 “ ）间距KK® PC板连接器，顶面入口，聚酯连接器， 5.0μM （ 200μ ”），锡（Sn ） ， 8电路 3.96mm .156" Pitch KK® PC Board Connector, Top Entry, Polyester Connector, 5.0μm 200μ" Tin Sn, 8 Circuits

8 Position Receptacle Connector Through Hole

得捷:
CONN RCPT 8POS 0.156 TIN PCB

艾睿:
Molex&s;s socket strip 0009484088 header connector is a great way to reduce safety concerns in projects where there is a possibility of accidentally shorting electronic components. This RCP connector&s;s 8 contacts that are made out of phosphor bronze and plated with tin over copper. This is a 1-row connector. Its pitch is 3.96 mm. It has a maximum voltage rating of 250 V. It has a straight body orientation. It has a receptacle type gender. This device has a maximum current rating of 5 A/contact. This component will be shipped in tray format. This product is 31.6 mm long, 11.4 mm tall and 11.92 mm deep. 0009484088 is housed in white polyester. This connector has an operating temperature of -40 to 105 °C. It uses the solder termination method.

安富利:
Conn Socket Strip RCP 8 POS 3.96mm Solder ST Thru-Hole Tray
