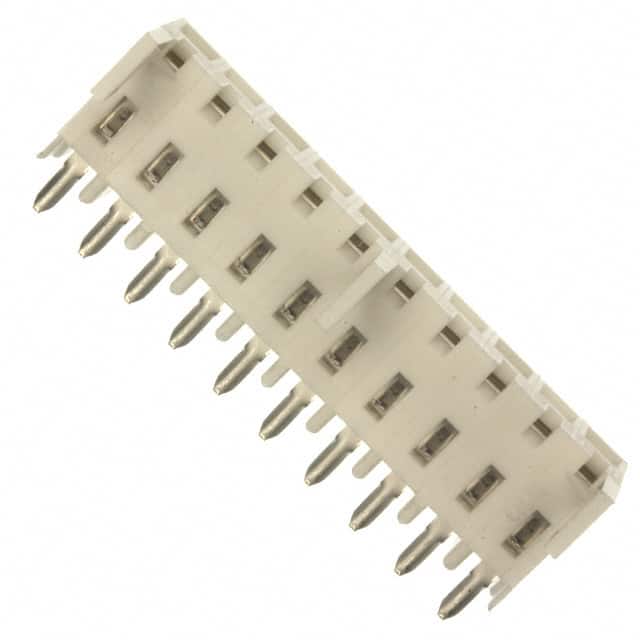

3.96毫米（ .156 “ ）间距KK® PC板连接器，顶面入口，聚酯连接器，金（ Au）的选择性， 10电路 3.96mm .156" Pitch KK® PC Board Connector, Top Entry, Polyester Connector, Gold Au Selective, 10 Circuits
10 Position Receptacle Connector Through Hole
得捷:
CONN RCPT 10POS 0.156 GOLD PCB
贸泽:
Molex KK 156 PCB Assy Top 10 Ckts Gold
艾睿:
Look no further than the socket strip 0009483106 header connector from Molex, a great tool to use when board-to-board interconnects is required. This RCP connector&s;s 10 contacts that are made out of brass and plated with gold over nickel. Its pitch is 3.96 mm. This is a 1-row connector. It has a straight body orientation. It has a maximum voltage rating of 250 V. It has a receptacle type gender. This device has a maximum current rating of 5 A/contact. The item will be shipped in tray orientation. 0009483106 is housed in white polyester. It uses the solder termination method. This connector has an operating temperature of -40 to 80 °C. This product is 39.52 mm long, 11.4 mm tall and 11.92 mm deep.
安富利:
Conn Socket Strip RCP 10 POS 3.96mm Solder ST Thru-Hole Tray
