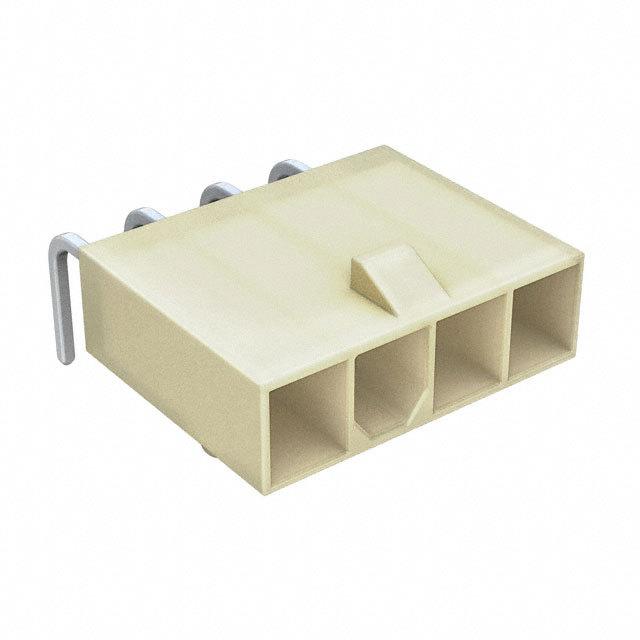

MOLEX 0039303045 针座, 4路, 直角型
Connector Header Through Hole, Right Angle 4 position 0.165" 4.20mm
得捷:
CONN HEADER R/A 4POS 4.2MM
贸泽:
Headers & Wire Housings MINI-FIT JR HDR 04P RA 94V-2
e络盟:
针座, 4路, 直角型
艾睿:
Easily connect a power supply to a circuit with this 0039303045 power connector from Molex. This HDR connector&s;s 4 contacts that are made out of brass and plated with tin over copper. Its pitch is 4.2 mm. It has a right angle body orientation. It has a header type gender. It has a maximum voltage rating of 600 V. This connector has a single port. 0039303045 is housed in nylon 6/6. This device has a maximum current rating of 13 A/contact. Its 4 terminals use the solder termination method. This power connector has an operating temperature range of -40 °C to 105 °C. This product is 18 mm long and 13.9 mm.
安富利:
Conn Wire to Board HDR 4 POS 4.2mm Solder RA Thru-Hole Bag
Chip1Stop:
Conn Wire to Board HDR 4 POS 4.2mm Solder RA Thru-Hole Bag
Verical:
Conn Wire to Board HDR 4 POS 4.2mm Solder RA Side Entry Thru-Hole Mini-Fit Jr™ Bag
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
0039303045 Molex 莫仕 | 当前型号 | 当前型号 |
0039307041 莫仕 | 完全替代 | 0039303045和0039307041的区别 |
39303045 莫仕 | 类似代替 | 0039303045和39303045的区别 |
