046288050000846+

KYOCERA  046288050000846+  连接器, FFC/ FPC板, ZIF, 6288系列, 50 触点, 插头, 0.5 mm, 表面安装　, 底部

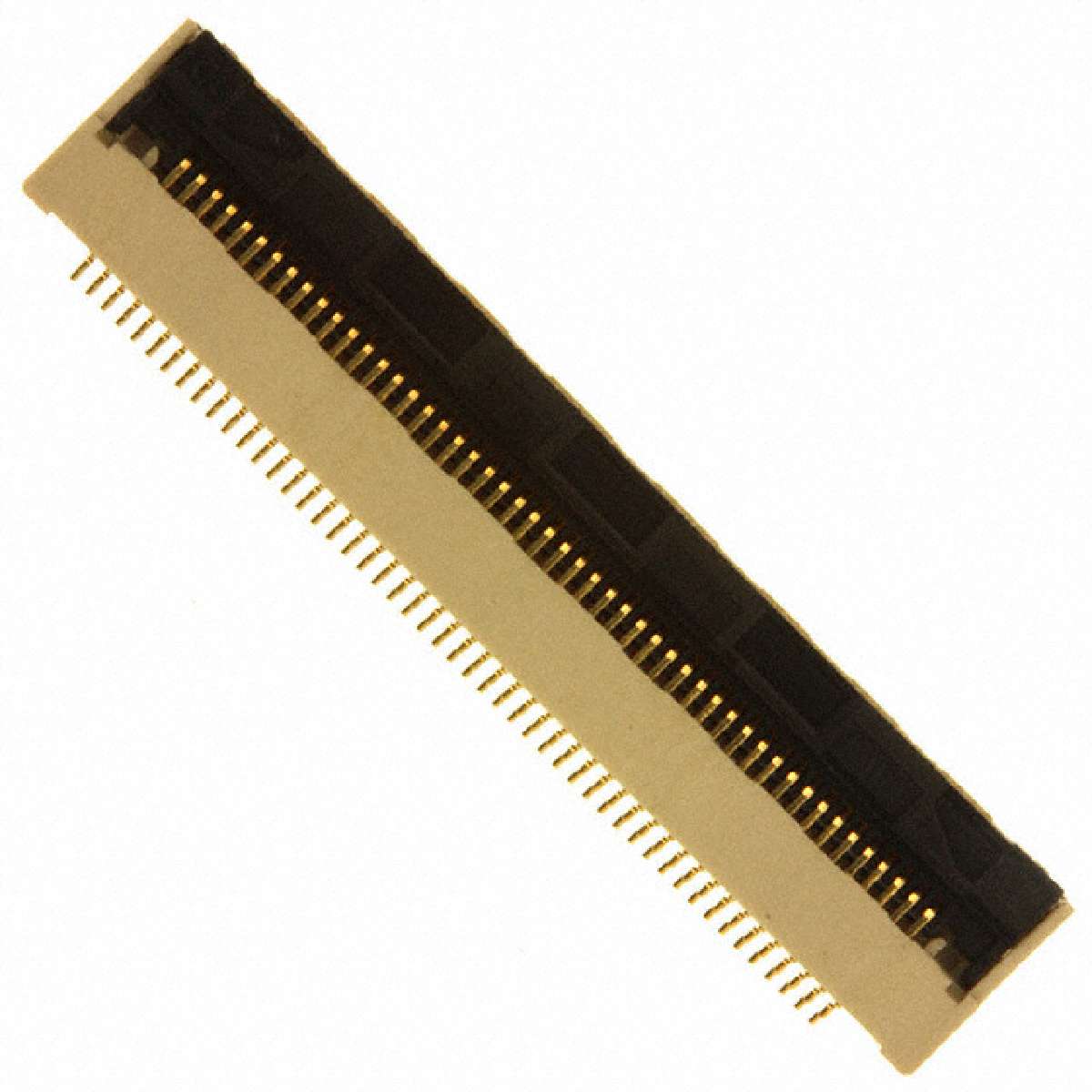

The is a 50-pole straight FPC Secure Lock Connector, 6288 series, with copper alloy contacts, heat-resistant plastic insulator, ZIF SMT one-touch-flip lock-type. The 6288 series is an FPC connector designed for vibrative application. It is 0.5mm pitch, bottom-contact. The structure enables FPC to be prevented from coming off and being inserted aslant. When connecting with a FPC/FFC with tabs, displacement of contacting points due to slanting insertion is prevented to ensure the connection as well as the FPC/FFC retention force improves. The workability is improved by the FPC/FFC temporary holding structure that enables the simple finger-operation. The nice clicking feeling obtained by the one-touch-flip locking operation assures the secure locked condition.

.

2.0mm Profile height

.

0.4A AC/DC Current rating

.

50VAC/DC Voltage rating

.

200VACrms Minimum withstanding voltage

.

Heat-resistant plastic insulator

.

0.4A AC/DC Rated current

.

50VAC/DC Rated voltage
