09 9766 30 04

BINDER  09 9766 30 04  圆形连接器, 709系列, 插座, 4 触点, 母, 焊接, 面板安装

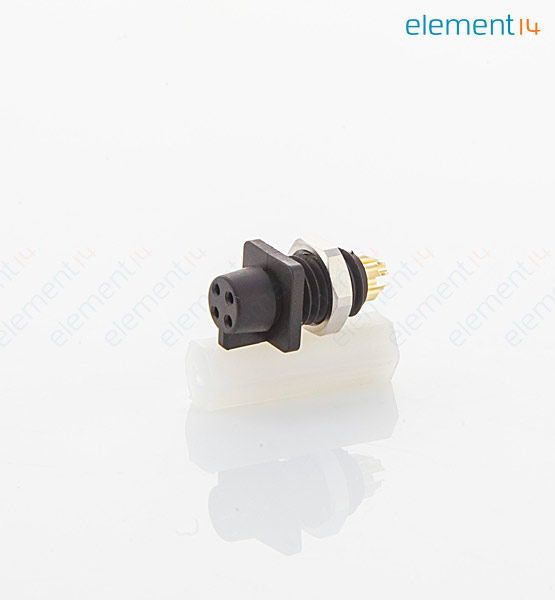

The from is a subminiature circular female panel mount connector with 4 socket contact. This connector is easy to assemble and has snap-in locking facility.

.

Solder termination

.

Wire gauge size is 0.25mm² 24AWG

.

IP40 degree of protection

.

Temperature range from -25°C to 70°C

.

Rated voltage of 60V

.

Rated current of 3A at 40°C

.

Bronze CuSn contacts with gold Au plating

.

Polyamide PA housing

.

Polyamide PA contact body

.

Rated impulse voltage of 800V
