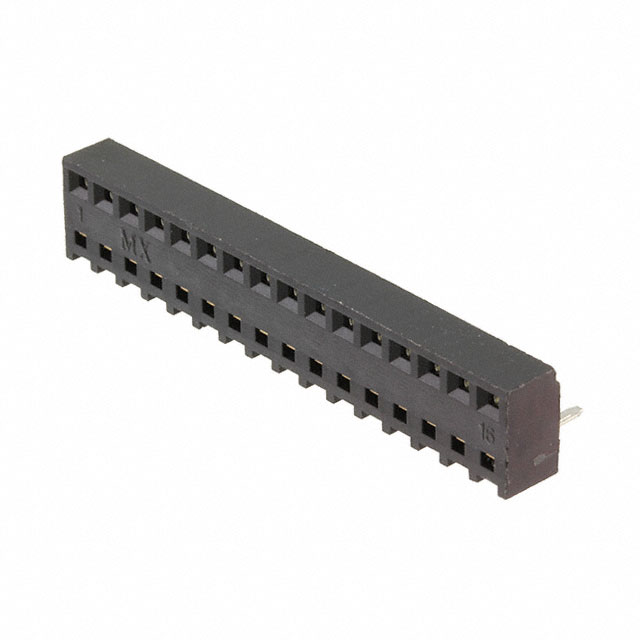

0448120016

2.54毫米（ .100“ ）间距KK® PC板插座，顶部和底部进入，低调， 5.0μM （ 200μ ”），锡（Sn ） ， 16电路 2.54mm .100" Pitch KK® PC Board Receptacle, Top and Bottom Entry, Low Profile, 5.0μm 200μ" Tin Sn, 16 Circuits

16 Position Receptacle, Bottom or Top Entry Connector Through Hole

得捷:
CONN RCPT 16POS 0.1 TIN PCB

艾睿:
Think of Molex&s;s socket strip 0448120016 header connector the next time you&s;re concerned about accidentally shorting out pins on your printed circuit. This RCP connector&s;s 16 contacts that are made out of copper alloy and plated with tin over nickel. It has a straight body orientation. This is a 1-row connector. Its pitch is 2.54 mm. It has a maximum voltage rating of 250 V. It has a receptacle type gender. This device has a maximum current rating of 5 A/contact. This component will be shipped in tray format. This connector has an operating temperature of 0 to 105 °C. It uses the solder termination method. 0448120016 is housed in black nylon. This product is 41.4 mm long, 4.5 mm tall and 7.5 mm deep.

安富利:
Conn Socket Strip RCP 16 POS 2.54mm Solder ST Thru-Hole Tray
