0447692002

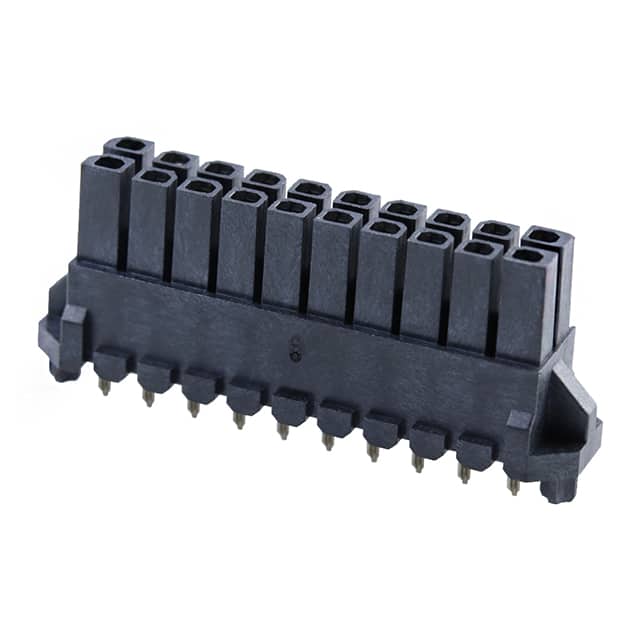

3.00毫米（ 0.118 “ ）间距微飞度3.0 ， BMI ™插座头，双排，垂直，用压装的塑料钉， 0.38μm （ 15μ ”），金（Au ）选择，电路20 3.00mm .118" Pitch Micro-Fit 3.0, BMI™ Receptacle Header, Dual Row, Vertical, with Press-fit Plastic Pegs, 0.38μm 15μ" Gold Au Selective, 20 Circuits

20 位置 插座 0.118"（3.00mm） 通孔 镀金

得捷:
CONN RCPT 20POS 0.118 GOLD PCB

艾睿:
Use this wire to board 0447692002 header connector from Molex where IDC ribbon cables are used. This RCP connector&s;s 20 contacts that are made out of phosphor bronze and plated with gold. It has a maximum voltage rating of 250 V. This is a 2-row connector. It has a straight body orientation. Its pitch is 3 mm. It has a receptacle type gender. This device has a maximum current rating of 5 A/contact. The item will be shipped in tray orientation. This product is 36 mm long, 11.34 mm tall and 9.6 mm deep. This connector has an operating temperature of -40 to 105 °C. It uses the solder termination method. 0447692002 is housed in black nylon.

安富利:
Conn Wire to Board RCP 20 POS 3mm Solder ST Thru-Hole Tray
