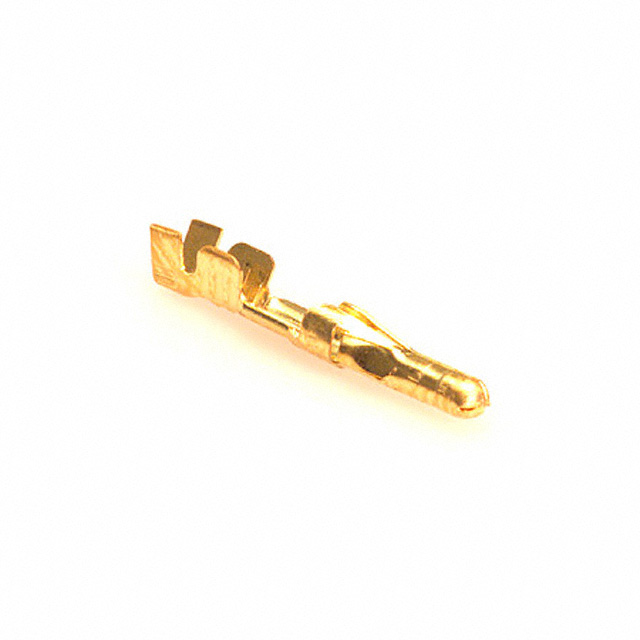

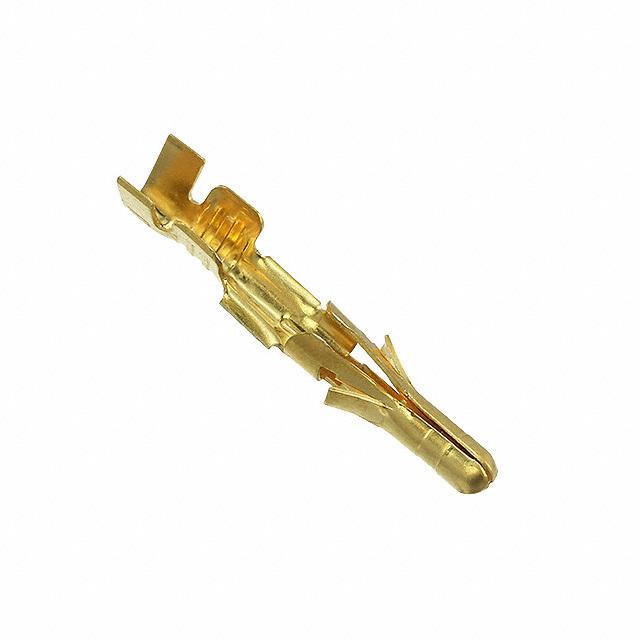

MOLEX 02-09-6123 触芯, 1380系列, 公, 压接, 18 AWG, 镀金触芯, 0.093" Commercial Pin & Socket Connectors
The is a 0.093-inch standard male pin Crimp Terminal made of brass with gold plated finish. This 1380 series male crimp terminal accepts 22 to 18AWG wire and ideal for applications up to 17A. "s 2.36mm diameter terminals are used in the 5.03mm pitch standard 0.093-inch and 6.71mm pitch 3191 products. The terminal is suitable for power applications.
- .
- High-current terminal
- .
- 25 Maximum mating cycles durability
极性 Male
线规 18AWG ~ 22AWG
触点电镀 Gold
额定电流Max 17 A
工作温度Max 105 ℃
工作温度Min -40 ℃
接触电阻Max 10 mΩ
长度 21.97 mm
宽度 3.76 mm
高度 3.76 mm
触点材质 Brass
工作温度 -40℃ ~ 105℃
产品生命周期 Unknown
包装方式 Bulk
制造应用 Communications & Networking, Microwave, 电源管理, Computers & Computer Peripherals, Power Management, 通信与网络, 微波, 消费电子产品, Consumer Electronics, 计算机和计算机周边
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536904000
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
02-09-6123 Molex 莫仕 | 当前型号 | 当前型号 |
0002096122 莫仕 | 完全替代 | 02-09-6123和0002096122的区别 |
770147-5 泰科 | 功能相似 | 02-09-6123和770147-5的区别 |
