008290020001011

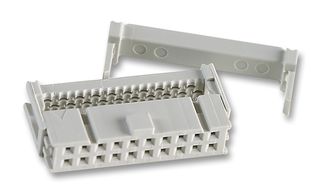

AVX INTERCONNECT  008290020001011  线至板连接器, 8290系列, 20 触点, 插座, 2.54 mm, IDC / IDT, 2 排

The 8290 series low-profile IDC Socket Connector available in industry standard sizes of 10 to 64 positions. They mate to Elco series 8289, 8293, 8380 and 8383 headers, as well as other industry compatible connectors. An optional strain-relief, which can be easily fitted, eliminates stress on the cable. An in-position polarizing key is available to ensure positive polarization. Contacts are copper alloy for added reliability and are designed to mate to 0.024-inch 0.60mm to 0.025-inch 0.64mm square pins. The contact design facilitates maximum wipe on the header pins.

.

UL94V-0 Flammability

.

>1000MR Insulation resistance

.

1A at 70°C maximum ambient Current rating

.

350VDC/AC Peak voltage rating
