0545502471

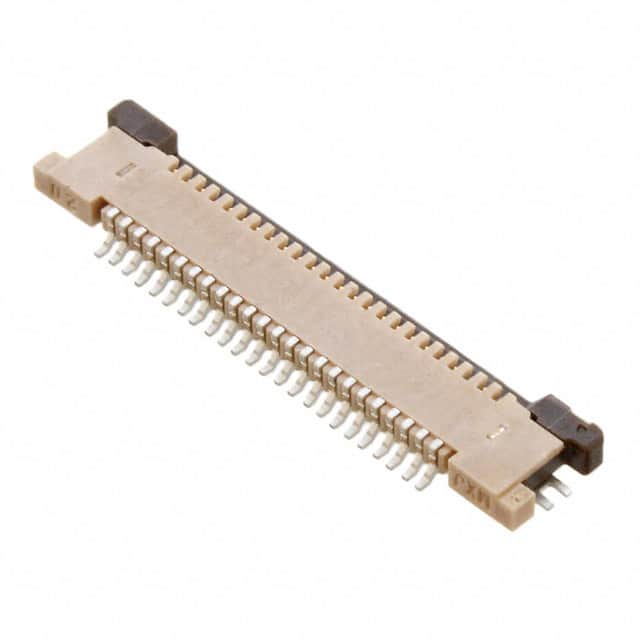

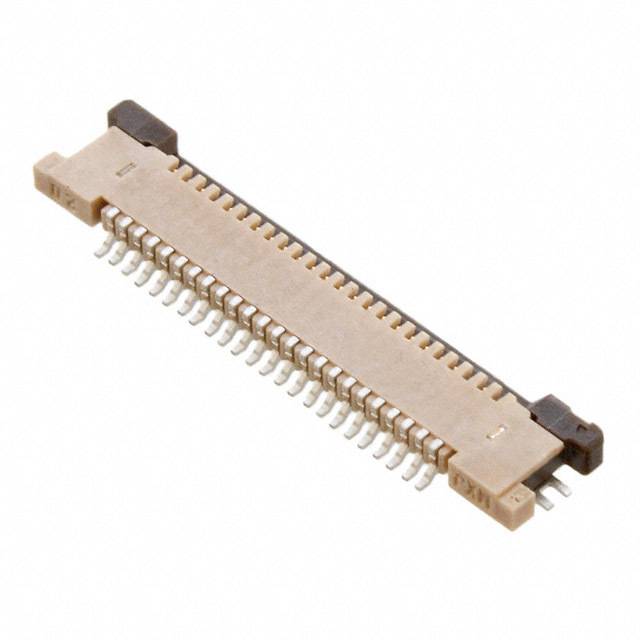

0.50毫米（ 0.020 “ ）间距FFC / FPC连接器， 1.20毫米（ 0.047 ” ）的高度，直角， SMT ， ZIF ，顶部触点类型， 24电路，无铅，金触点电镀 0.50mm .020" Pitch FFC/FPC Connector, 1.20mm .047" Height, Right Angle, SMT,ZIF, Top Contact Style, 24 Circuits, Lead-free, Gold Contact Plating

Optimize the design of a space-limited electronic device with this fpc connector flexible flat cable from . It has a right angle body orientation. Its pitch is 0.5 mm. It has a maximum voltage rating of 50 V. This socket type connector"s 24 contacts that are made out of phosphor bronze and plated with gold over nickel. This is a 1-row connector. This device has a maximum current rating of 0.5 A/contact. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. 0545502471 is housed in natural liquid crystal polymer. This flexible flat cable has an operating temperature of -20 to 85 °C. It uses the solder termination method. This product is 17.2 mm long, 1.2 mm tall and 3.85 mm deep.
